Carriage Assembly, SW Series, 331 ft-lb MPN:UT2WPAXS

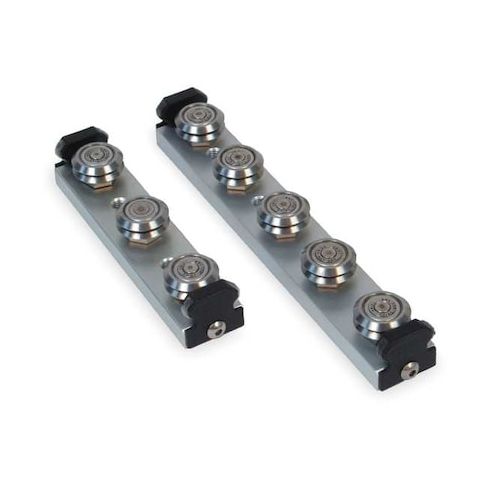

Carriage Assembly, SW Series, 331 ft-lb
The Bishop-Wisecarver SW Series Linear Guide Carriage Assembly is a high-performance solution for precision linear motion applications. With a maximum radial load of 1,191 lbf and axial load of 332 lbf, this carriage assembly is ideal for use in demanding industrial environments such as robotics, machine tools, and automation systems. Its compact design and aluminum construction make it an excellent choice for applications where space is limited. The SW Series carriage assembly requires lubrication for optimal performance and is compatible with vee profile rails, making it a versatile and reliable option for a wide range of applications.
Top product features:
- Linear Guide Carriage Assembly with a carriage height of 1.09 in
- Carriage made of aluminum for reduced weight and increased corrosion resistance
- Roller made of carbon steel for high strength and durability
Top product applications:
- Machine Tool Automation
- Robotics and Automation Systems
- Precision Assembly and Test Equipment
Linear Guide Carriage Assembly, Carriage Height 1.09 in, Carriage Length 5.677 in, Carriage Width 1.496 in, Carriage Material Aluminum, Roller Material Carbon Steel, Radial Load - Maximum 1,191 lbf, Axial Load - Maximum 332 lbf, Manufacturer Size 2, Dynamic Load Capacity 1,191 lbf, Requires Lubrication Lubricant Required, Carriage Type Ball, For Rail Width 1.574 in, For Use With Vee Profile, Static Load Capacity 1,191 lbf, Combined Carriage and Rail Height 1.377 in, Series SW
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 3 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.75
- Package Width: 1.50
- Package Height: 1.12
- Package Weight: 0.70
Product info last updated on February 7, 2026 10:35am UTC
Category: Bearings, V-belts and Power Transmission Equipment
