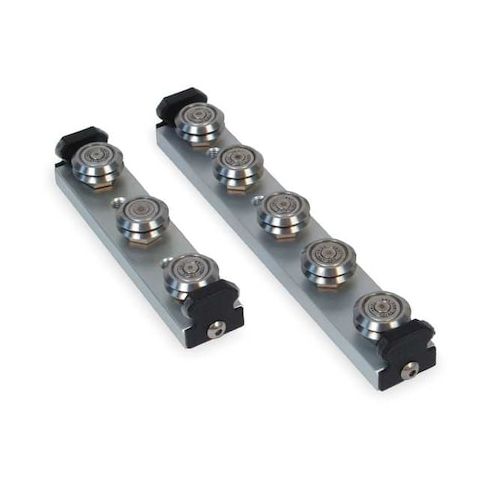

Carriage Assembly, SW Series, 1146 ft-lb MPN:UT3WPAXS
Carriage Assembly, SW Series, 1146 ft-lb
The Bishop-Wisecarver SW Series Linear Guide Carriage Assembly is a reliable and precise solution for a variety of applications. Designed for use with vee profile rails, this carriage assembly provides smooth and quiet operation, making it ideal for applications such as material handling, packaging, and automation. With a maximum radial load of 1,147 lbf and a dynamic load capacity of 2,653 lbf, this assembly can handle heavy loads and demanding environments. Its compact size and lightweight aluminum construction make it perfect for space-constrained applications, while its long lifespan and low maintenance requirements ensure optimal performance and efficiency.
Top product features:
- The carriage assembly has a maximum radial load of 1,147 lbf, allowing for heavy-duty applications.
- The carriage is made of aluminum, providing a lightweight yet durable construction.
- The carriage features a ball-bearing design, enabling smooth and quiet movement.
Top product applications:
- Machine tool linear guide for precision manufacturing
- Robotics and automation linear motion system
- Precision assembly and inspection equipment
Linear Guide Carriage Assembly, Carriage Height 1.468 in, Carriage Length 7.925 in, Carriage Width 2.165 in, Carriage Material Aluminum, Roller Material Carbon Steel, Radial Load - Maximum 1,147 lbf, Axial Load - Maximum 1,147 lbf, Manufacturer Size 3, Dynamic Load Capacity 2,653 lbf, Requires Lubrication Lubricant Required, Carriage Type Ball, For Rail Width 2.283 mm, For Use With Vee Profile, Static Load Capacity 2,653 lbf, Combined Carriage and Rail Height 1.968 in, Series SW
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 3 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 8.00
- Package Width: 2.25
- Package Height: 1.50
- Package Weight: 2.01
Product info last updated on February 2, 2026 1:31pm UTC
Category: Bearings, V-belts and Power Transmission Equipment
