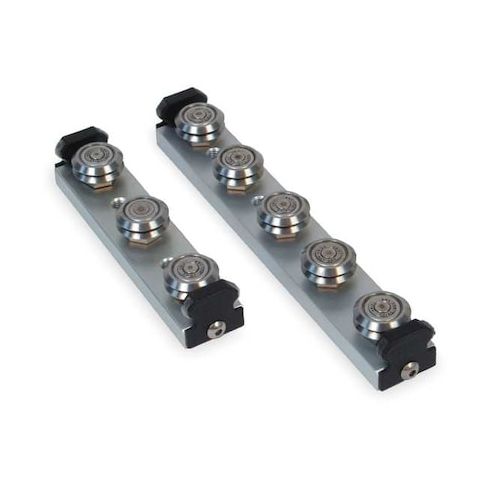

Carriage Assembly, SW Series, 1605 ft-lb MPN:UT3WPAXS-5A
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G9608505
Carriage Assembly, SW Series, 1605 ft-lb
The Bishop-Wisecarver SW Series Linear Guide Carriage Assembly is a precision-engineered solution for demanding applications. Utilized in industries such as aerospace, medical, and automation, this carriage assembly provides a reliable and precise motion system. The aluminum and carbon steel construction offers exceptional strength and durability, while the ball-bearing design ensures smooth and quiet operation. With a maximum axial load of 1,605 lbf and a radial load of 3,156 lbf, this carriage assembly is ideal for applications requiring high precision and reliability, such as robotics, machine tools, and conveyor systems. It also meets or exceeds industry standards for quality and performance.
Top product features:
- Roller Material Carbon Steel
- Carriage Material Aluminum
- Lubricant Required
Top product applications:
- Machine Tool Automation
- Assembly Line Automation
- Material Handling and Logistics
Linear Guide Carriage Assembly, Carriage Height 1.468 in, Carriage Length 12.492 in, Carriage Width 2.165 in, Carriage Material Aluminum, Roller Material Carbon Steel, Radial Load - Maximum 3,156 lbf, Axial Load - Maximum 1,605 lbf, Manufacturer Size 3, Dynamic Load Capacity 3,156 lbf, Requires Lubrication Lubricant Required, Carriage Type Ball, For Rail Width 2.283 mm, For Use With Vee Profile, Static Load Capacity 3,156 lbf, Combined Carriage and Rail Height 1.968 in, Series SW
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 3 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 12.50
- Package Width: 2.25
- Package Height: 1.50
- Package Weight: 3.38
Product info last updated on February 10, 2026 2:45pm UTC
Category: Bearings, V-belts and Power Transmission Equipment
