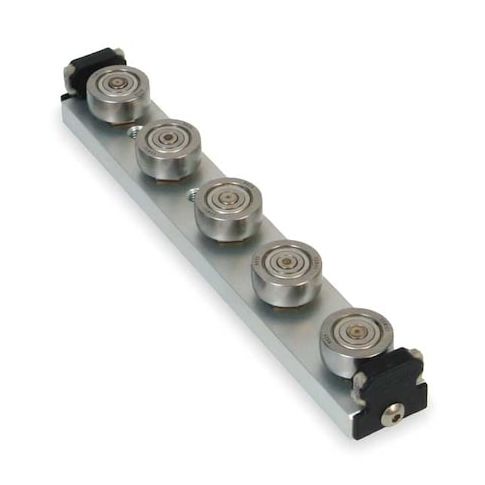

Carriage Assembly, 20.7 x 24 x 166.5 mm MPN:UT1WPAR-5A
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G3065657
Carriage Assembly, 20.7 x 24 x 166.5 mm
The Bishop-Wisecarver Linear Guide Carriage Assembly is a precision-engineered solution for applications requiring smooth, accurate motion. With a carriage height of 20.7 mm and a maximum radial load of 652 lbf, this assembly is ideal for use in robotics, automation, and precision machinery. Its aluminum carriage and carbon steel rollers provide durability and resistance to wear. The carriage assembly is also suitable for use with vee profiles and requires lubrication for optimal performance. Its compact design and high load capacity make it an excellent choice for a variety of applications, including medical devices, aerospace equipment, and industrial machinery.
Top product features:
- Carriage Height of 20.7 mm allows for compact design and reduced profile
- Radial Load Capacity of 652 lbf enables heavy-duty applications
- Ball-type Carriage provides smooth and precise motion
Top product applications:
- Positioning and guiding linear systems in medical devices
- Automated assembly and inspection equipment
- Precision machinery and equipment for the semiconductor industry
Linear Guide Carriage Assembly, Carriage Height 20.7 mm, Carriage Length 166.5 mm, Carriage Width 24 mm, Carriage Material Aluminum, Roller Material Carbon Steel, Radial Load - Maximum 652 lbf, Axial Load - Maximum 0 lbf, Manufacturer Size 1, Dynamic Load Capacity 652 lbf, Requires Lubrication Lubricant Required, Carriage Type Ball, For Rail Width 26 mm, For Use With Vee Profile, Static Load Capacity 652 lbf, Combined Carriage and Rail Height 27.6 mm, Series SW
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 3 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 8.00
- Package Width: 1.50
- Package Height: 1.00
- Package Weight: 0.42
Product info last updated on January 31, 2026 1:58pm UTC
Category: Bearings, V-belts and Power Transmission Equipment
