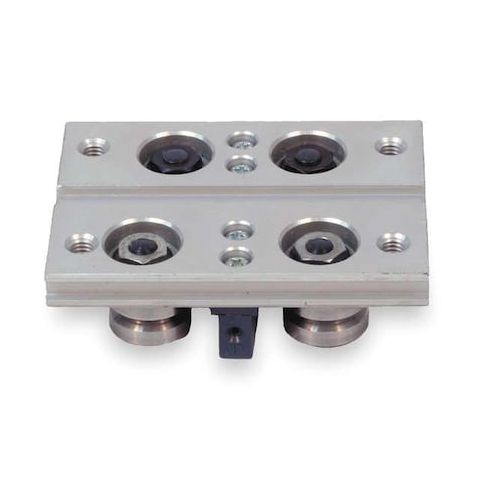

Carriage Assembly, 16.1 x 40 x 55 mm MPN:FCP12127
Carriage Assembly, 16.1 x 40 x 55 mm
The Bishop-Wisecarver Linear Guide Carriage Assembly is a precision-engineered component ideal for applications requiring smooth, precise motion. With a compact 16.1 x 40 x 55 mm footprint, this aluminum carriage can be used in a variety of industries, including robotics, medical devices, and industrial automation. Its steel rollers ensure reliable performance under radial and axial loads up to 27 lbf. This product is particularly suited for use with PRT rings/segments, offering a cost-effective solution for applications requiring high-precision motion control. Its compact size and low maintenance requirements make it an attractive option for designers seeking to optimize their systems.
Top product features:
- Linear motion is enabled through a slide ring carriage assembly.
- The carriage is designed for use with PRT rings/segments.
- Lubrication is not required for the carriage assembly.
Top product applications:
- Precision medical equipment manufacturing
- Automotive parts and accessories
- Robotics and automation systems
Linear Guide Carriage Assembly, Carriage Height 16.1 mm, Carriage Length 55 mm, Carriage Width 40 mm, Carriage Material Aluminum, Roller Material Steel, Radial Load - Maximum 27 lbf, Axial Load - Maximum 27 lbf, Manufacturer Size 12, Requires Lubrication Lubricant Not Required, Carriage Type Slide Ring, For Use With PRT Rings/Segments, Static Load Capacity Not Applicable, Combined Carriage and Rail Height 17.7 mm, Series PRT, Operating Temperature - Maximum 140 Degrees F
Additional Information
- Country of Origin: GB
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 21 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.20
- Package Width: 1.60
- Package Height: 0.60
- Package Weight: 0.15
Product info last updated on February 28, 2026 9:38pm UTC
Category: Bearings, V-belts and Power Transmission Equipment
