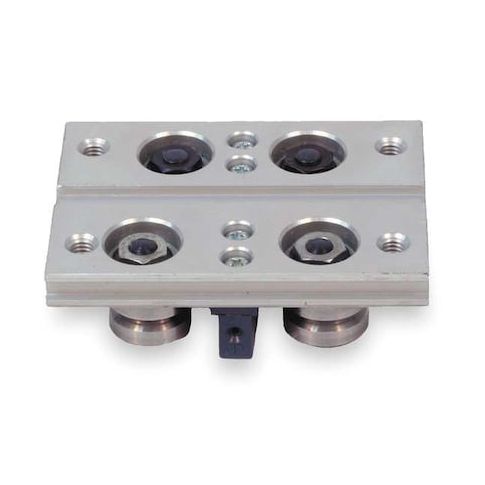

Carriage Assembly, 26.6 x 80 x 105 mm MPN:FCP25351

The Bishop-Wisecarver Linear Guide Carriage Assembly is a compact and reliable solution for precision motion control applications. With a carriage height of 26.6 mm and a length of 105 mm, this assembly is ideal for use in robotics, CNC machines, and other equipment where precise movement is critical. The aluminum carriage and steel rollers provide a high load capacity of 180 lbf in both radial and axial directions. Suitable for use with PRT rings/segments, this assembly offers a compact and efficient solution for a variety of applications, including medical devices, semiconductor equipment, and industrial automation systems.

Top product features:

• Aluminum carriage material provides strength and light weight
• Steel roller material ensures durability and resistance to wear
• Supports radial loads up to 180 lbf and axial loads up to 180 lbf

Top product applications:

• Automotive Applications: The Carriage Assembly is suitable for use in automotive components such as door tracks, trunk lids, and hood assemblies.
• Medical Device Manufacturing: The linear guide carriage assembly is ideal for use in medical device manufacturing, particularly in applications that require precise movement and positioning, such as surgical instruments and medical imaging equipment.
• Robotics and Automation: The carriage assembly is well-suited for use in robotics and automation applications, including pick-and-place machines, robotic arms, and other equipment that requires precise linear motion.
