Carriage Assembly, 35.3 x 115 x 145 mm MPN:FCP44468
Carriage Assembly, 35.3 x 115 x 145 mm

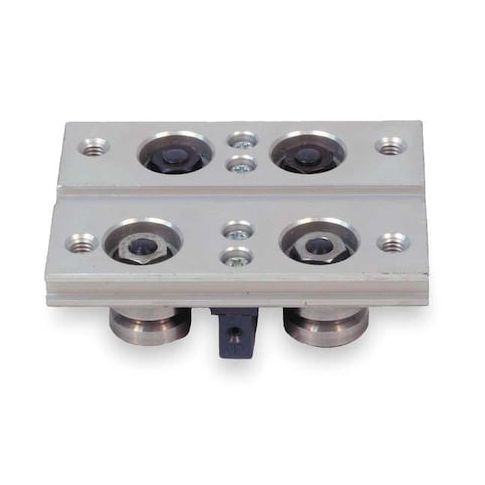

This Bishop-Wisecarver Linear Guide Carriage Assembly is a precision-engineered component ideal for applications requiring smooth and accurate motion. With a compact design and high load capacity, it's perfect for use in robotics, automation, and medical equipment manufacturing. The carriage assembly features a durable aluminum construction, steel rollers, and a low-friction design that reduces wear and tear. Its compact size and low profile make it suitable for use in tight spaces, and its operating temperature range of up to 140°F ensures reliable performance in a variety of environments. Ideal for use with PRT rings and segments, it's a reliable choice for demanding applications.
Top product features:
- Linear Guide Carriage Assembly with aluminum carriage and steel rollers
- Supports radial loads of up to 360 lbf and axial loads of up to 360 lbf
- Operates within a temperature range of up to 140 Degrees F
Top product applications:
- Automotive manufacturing: used in the production of vehicle doors and trunk lids to provide smooth and precise movement.
- Medical equipment: integrated into medical devices such as ventilators and surgical tables to enable smooth and controlled movement.
- Robotics and automation: used in robotic arms and automated assembly lines to provide precise and reliable movement.
Linear Guide Carriage Assembly, Carriage Height 35.3 mm, Carriage Length 145 mm, Carriage Width 115 mm, Carriage Material Aluminum, Roller Material Steel, Radial Load - Maximum 360 lbf, Axial Load - Maximum 360 lbf, Manufacturer Size 44, Requires Lubrication Lubricant Not Required, Carriage Type Slide Ring, For Use With PRT Rings/Segments, Static Load Capacity Not Applicable, Combined Carriage and Rail Height 38 mm, Series PRT, Operating Temperature - Maximum 140 Degrees F
Additional Information
- Country of Origin: GB
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 21 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.70
- Package Width: 4.50
- Package Height: 1.40
- Package Weight: 2.20
Product info last updated on April 5, 2026 6:48pm UTC
Category: Bearings, V-belts and Power Transmission Equipment
