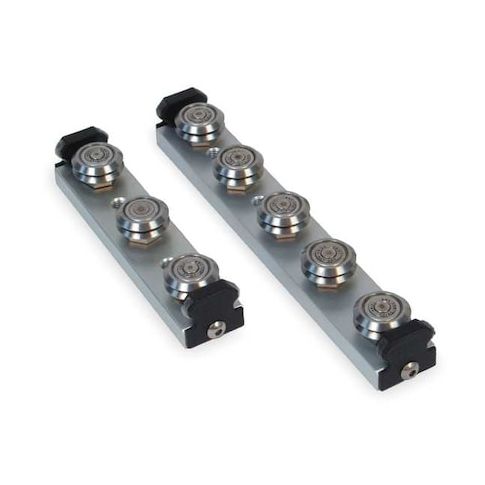

Carriage Assembly, 20.7 x 24 x 166.5 mm MPN:UT1WPA-5A
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G2694754
Carriage Assembly, 20.7 x 24 x 166.5 mm
The Bishop-Wisecarver Linear Guide Carriage Assembly is a precision-engineered solution for applications requiring smooth and accurate motion. With a compact design and high load capacity, this carriage is ideal for use in robotics, automation, and precision machinery. Its aluminum and carbon steel construction provides a durable and corrosion-resistant solution, while its ball-bearing design ensures smooth and quiet operation. The carriage can withstand radial and axial loads of up to 652 and 228 lbf respectively, making it suitable for a wide range of applications, including assembly, testing, and inspection processes. It ships in just 3 days.
Top product features:
- Linear Guide Carriage Assembly with Ball Carriage Type
- Supports Radial Loads up to 652 lbf
- Supports Axial Loads up to 228 lbf
Top product applications:
- Automotive Components
- Machine Tooling and Automation
- Robotics and Mechatronics
Linear Guide Carriage Assembly, Carriage Height 20.7 mm, Carriage Length 166.5 mm, Carriage Width 24 mm, Carriage Material Aluminum, Roller Material Carbon Steel, Radial Load - Maximum 652 lbf, Axial Load - Maximum 228 lbf, Manufacturer Size 1, Dynamic Load Capacity 652 lbf, Requires Lubrication Lubricant Required, Carriage Type Ball, For Rail Width 26 mm, For Use With Vee Profile, Static Load Capacity 652 lbf, Combined Carriage and Rail Height 26.3 mm, Series SW
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 3 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 8.00
- Package Width: 1.50
- Package Height: 1.00
- Package Weight: 0.39
Product info last updated on February 1, 2026 11:17am UTC
Category: Bearings, V-belts and Power Transmission Equipment
