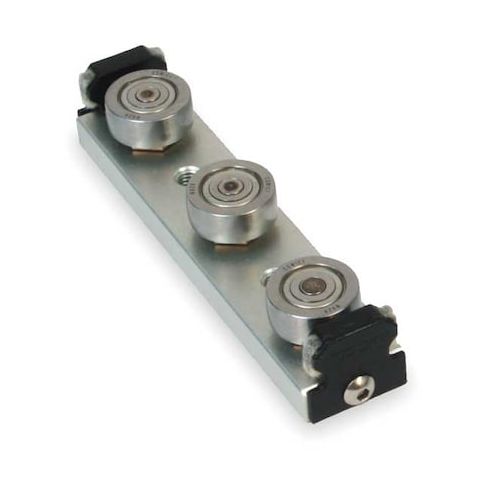

Carriage Assembly, 27.7 x 38 x 144.2 mm MPN:UT2WPAR
Carriage Assembly, 27.7 x 38 x 144.2 mm
The Bishop-Wisecarver Linear Guide Carriage Assembly is a precision-engineered component designed for use in a variety of applications where smooth and accurate motion is required. With a maximum radial load capacity of 1,191 lbf and a compact design of 27.7 x 38 x 144.2 mm, this carriage assembly is ideal for use in industrial automation, medical devices, and aerospace equipment. Its aluminum construction and carbon steel rollers ensure durability and resistance to wear, while its lubrication requirements simplify maintenance. Suitable for use with vee profile rails, this carriage assembly is a reliable choice for applications demanding precise motion and minimal vibration.
Top product features:
- Ball Carriage Type for smooth motion and reduced friction
- Carbon Steel Rollers for high radial load capacity and durability
- Requires Lubrication for optimal performance and reduced wear
Top product applications:
- Robotics and Automation
- Linear Actuators and Stage Systems
- Precision Machine Tools
Linear Guide Carriage Assembly, Carriage Height 1.09 in, Carriage Length 5.677 in, Carriage Width 1.496 in, Carriage Material Aluminum, Roller Material Carbon Steel, Radial Load - Maximum 1,191 lbf, Axial Load - Maximum 0 lbf, Manufacturer Size 2, Dynamic Load Capacity 1,191 lbf, Requires Lubrication Lubricant Required, Carriage Type Ball, For Rail Width 1.574 in, For Use With Vee Profile, Static Load Capacity 1,191 lbf, Combined Carriage and Rail Height 37.4 mm, Series SW
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 3 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 7.80
- Package Width: 3.20
- Package Height: 1.60
- Package Weight: 0.80
Product info last updated on February 3, 2026 2:47pm UTC
Category: Bearings, V-belts and Power Transmission Equipment
