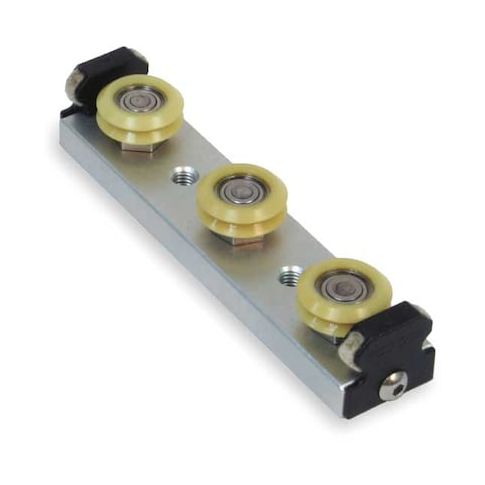

Carriage Assembly, 27.7 x 38 x 144.2 mm MPN:UT2WPAP
Carriage Assembly, 27.7 x 38 x 144.2 mm
The Bishop-Wisecarver Linear Guide Carriage Assembly is a precision-crafted solution for applications requiring smooth and reliable linear motion. With a compact design and aluminum construction, this carriage assembly is ideal for use in various industries, including robotics, medical equipment, and automation. Its high load capacity and low friction make it suitable for applications involving heavy loads and high speeds. The carriage assembly is also easy to integrate with vee profile rails, making it a versatile and convenient option for engineers and manufacturers. Its compact size and lightweight design also make it an excellent choice for space-constrained applications.
Top product features:
- Linear Guide Carriage Assembly provides a radial load capacity of up to 14 lbf.
- The carriage is designed to withstand axial loads of up to 24 lbf.
- The assembly features a ball carriage type for smooth movement on a vee profile rail.
Top product applications:
- Robotics and automation systems
- Medical device manufacturing equipment
- Precision machinery assembly lines
Linear Guide Carriage Assembly, Carriage Height 1.09 in, Carriage Length 5.677 in, Carriage Width 1.496 in, Carriage Material Aluminum, Roller Material Aluminum, Radial Load - Maximum 14 lbf, Axial Load - Maximum 24 lbf, Manufacturer Size 2, Dynamic Load Capacity 32 lbf, Requires Lubrication Lubricant Required, Carriage Type Ball, For Rail Width 1.574 in, For Use With Vee Profile, Static Load Capacity 32 lbf, Combined Carriage and Rail Height 35 mm, Series PW
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 3 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 7.60
- Package Width: 3.00
- Package Height: 1.50
- Package Weight: 0.55
Product info last updated on February 4, 2026 12:32am UTC
Category: Bearings, V-belts and Power Transmission Equipment
