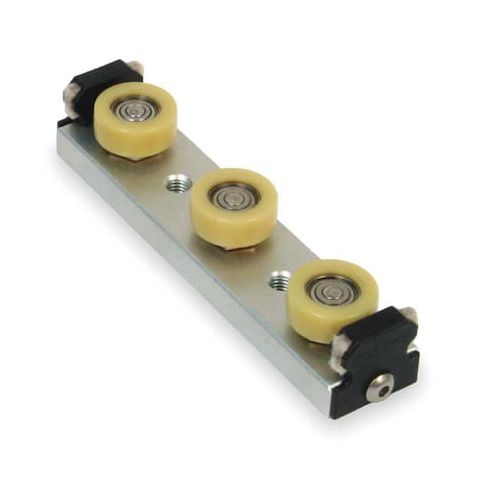

Carriage Assembly, 27.7 x 38 x 144.2 mm MPN:UT2WPAPR
Carriage Assembly, 27.7 x 38 x 144.2 mm
The Bishop-Wisecarver Linear Guide Carriage Assembly is a versatile and reliable component for a variety of applications. With a compact design and aluminum construction, it's ideal for use in precision machinery, robotic systems, and other high-accuracy applications. The carriage assembly features a ball-type design with a maximum radial load of 24 lbf and a dynamic load capacity of 32 lbf, making it suitable for a range of industries including medical, aerospace, and automation. Its compact size and low weight also make it suitable for use in space-constrained environments.
Top product features:
- Linear Guide Carriage Assembly has a maximum radial load of 24 lbf, allowing for heavy-duty applications.
- The Carriage Assembly features a ball bearing design, providing smooth and quiet motion.
- The assembly is designed for use with a Vee Profile rail, offering precise and consistent guidance.
Top product applications:
- High-precision assembly of medical devices
- Automotive parts manufacturing, specifically for engine components
- Robotics and mechatronics applications, such as pick-and-place machinery
Linear Guide Carriage Assembly, Carriage Height 1.09 in, Carriage Length 5.677 in, Carriage Width 1.496 in, Carriage Material Aluminum, Roller Material Aluminum, Radial Load - Maximum 24 lbf, Axial Load - Maximum 0 lbf, Manufacturer Size 2, Dynamic Load Capacity 32 lbf, Requires Lubrication Lubricant Required, Carriage Type Ball, For Rail Width 1.574 in, For Use With Vee Profile, Static Load Capacity 32 lbf, Combined Carriage and Rail Height 37.4 mm, Series PW
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 3 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 8.60
- Package Width: 3.00
- Package Height: 1.50
- Package Weight: 0.55
Product info last updated on February 19, 2026 4:10pm UTC
Category: Bearings, V-belts and Power Transmission Equipment
