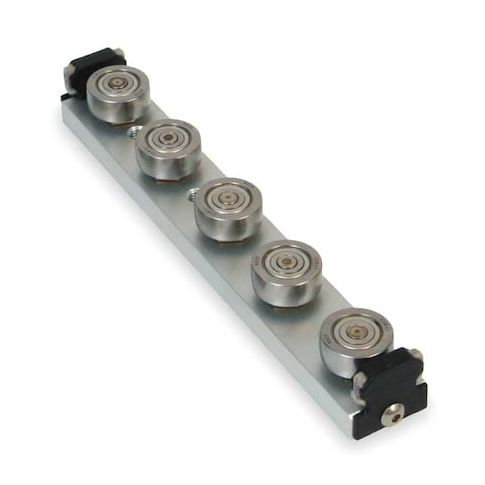

Carriage Assembly, 27.7 x 38 x 224.2 mm MPN:UT2WPAR-5A
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G1491131
Carriage Assembly, 27.7 x 38 x 224.2 mm
The Bishop-Wisecarver Linear Guide Carriage Assembly is a high-performance solution for applications requiring precise linear motion. With a maximum radial load of 1,416 lbf and a carriage made of durable aluminum, this assembly is ideal for use in manufacturing, material handling, and automation systems. Its compact size and low profile make it perfect for applications where space is limited. The carriage assembly can be easily integrated with vee profile rails, offering a reliable and efficient solution for a wide range of industries. Its long lifespan and low maintenance requirements make it an excellent choice for applications requiring high precision and reliability.
Top product features:
- Aluminum carriage material for reduced weight and increased durability
- Carbon steel roller material for improved load capacity and reduced wear
- Ball-bearing design for smooth and precise linear motion
Top product applications:
- Robotics and Automation Systems
- Precision Machine Tools
- Medical Device Manufacturing
Linear Guide Carriage Assembly, Carriage Height 1.09 in, Carriage Length 8.826 in, Carriage Width 1.496 in, Carriage Material Aluminum, Roller Material Carbon Steel, Radial Load - Maximum 1,416 lbf, Axial Load - Maximum 0 lbf, Manufacturer Size 2, Dynamic Load Capacity 1,416 lbf, Requires Lubrication Lubricant Required, Carriage Type Ball, For Rail Width 1.574 in, For Use With Vee Profile, Static Load Capacity 1,416 lbf, Combined Carriage and Rail Height 37.4 mm, Series SW
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 3 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 11.70
- Package Width: 3.10
- Package Height: 1.50
- Package Weight: 1.25
Product info last updated on February 1, 2026 4:54am UTC
Category: Bearings, V-belts and Power Transmission Equipment
