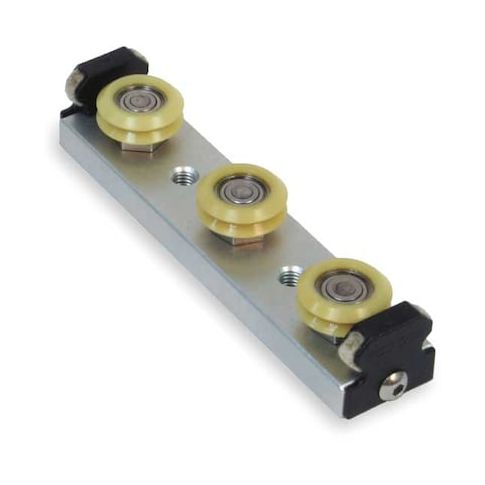

Carriage Assembly, 17.7 x 18 x 79.9 mm MPN:UT0WPAP
Carriage Assembly, 17.7 x 18 x 79.9 mm
The Bishop-Wisecarver Linear Guide Carriage Assembly is a compact and reliable solution for precision motion control applications. With a carriage height of 17.7mm and a length of 79.9mm, this assembly is ideal for use in tight spaces. Made from aluminum, it offers a high level of durability and resistance to corrosion. The carriage can withstand radial loads of up to 12lbf and axial loads of up to 9lbf, making it suitable for a wide range of applications, including robotics, automation, and medical devices. Its compact size and high load capacity make it an excellent choice for designers seeking a reliable and efficient motion control solution.
Top product features:
- Linear guide carriage assembly provides a ball-bearing design for smooth movement.
- Rollers are made of aluminum for durability and resistance to wear.
- The carriage can support a maximum radial load of 12 lbf and a maximum axial load of 9 lbf.
Top product applications:
- Linear Motion Systems for Robotics and Automation
- Automated Packaging Machines
- Precision Assembly Equipment
Linear Guide Carriage Assembly, Carriage Height 17.7 mm, Carriage Length 79.9 mm, Carriage Width 18 mm, Carriage Material Aluminum, Roller Material Aluminum, Radial Load - Maximum 12 lbf, Axial Load - Maximum 9 lbf, Manufacturer Size 0, Dynamic Load Capacity 12 lbf, Requires Lubrication Lubricant Required, Carriage Type Ball, For Rail Width 20 mm, For Use With PW Series Vee Channel, Static Load Capacity 12 lbf, Combined Carriage and Rail Height 22 mm, Series PW
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 3 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.20
- Package Width: 2.10
- Package Height: 1.10
- Package Weight: 0.10
Product info last updated on February 1, 2026 9:04am UTC
Category: Bearings, V-belts and Power Transmission Equipment
