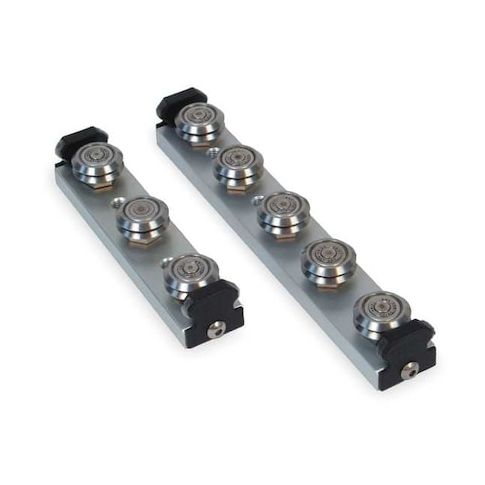

Carriage Assembly, 20.7 x 24 x 113.5 mm MPN:UT1WPA
Carriage Assembly, 20.7 x 24 x 113.5 mm
The Bishop-Wisecarver Linear Guide Carriage Assembly is a high-performance solution for precision motion control applications. With a compact design and robust construction, this carriage assembly is ideal for use in a variety of industries, including aerospace, medical, and industrial automation. Its aluminum and carbon steel components provide excellent durability and resistance to radial and axial loads. The carriage assembly is designed for use with vee profile rails and offers a dynamic load capacity of 549 lbf, making it suitable for applications requiring precise motion and high reliability. Its compact size and ease of integration make it an ideal choice for OEMs and system integrators.
Top product features:
- Linear Guide Carriage Assembly supports radial loads up to 549 lbf.
- Carriage features a ball type design.
- Assembly is lubrication required.
Top product applications:
- Positioning Systems
- Robotics and Automation
- Machine Tooling and Fabrication
Linear Guide Carriage Assembly, Carriage Height 20.7 mm, Carriage Length 113.5 mm, Carriage Width 24 mm, Carriage Material Aluminum, Roller Material Carbon Steel, Radial Load - Maximum 549 lbf, Axial Load - Maximum 162 lbf, Manufacturer Size 1, Dynamic Load Capacity 549 lbf, Requires Lubrication Lubricant Required, Carriage Type Ball, For Rail Width 26 mm, For Use With Vee Profile, Static Load Capacity 549 lbf, Combined Carriage and Rail Height 26.3 mm, Series SW
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 3 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.00
- Package Width: 1.50
- Package Height: 1.00
- Package Weight: 0.26
Product info last updated on February 13, 2026 11:30am UTC
Category: Bearings, V-belts and Power Transmission Equipment
