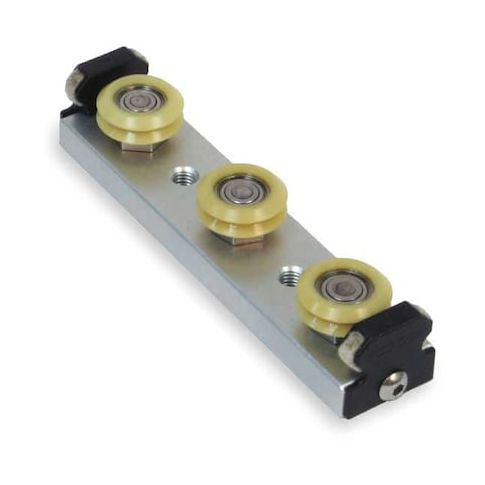

Carriage Assembly, 20.7 x 24 x 113.5 mm MPN:UT1WPAP
Carriage Assembly, 20.7 x 24 x 113.5 mm
The Bishop-Wisecarver Linear Guide Carriage Assembly is a compact and reliable solution for precision positioning and motion control applications. With a carriage made of aluminum and rollers also made of aluminum, this assembly is designed for high-precision use in applications such as medical devices, semiconductor equipment, and other precision machinery. Its small size and low weight make it ideal for use in confined spaces, and its maximum radial and axial loads of 12 and 17 lbf respectively ensure smooth and stable operation. This assembly is also easy to integrate into existing systems, making it a versatile and convenient choice for a wide range of applications.
Top product features:
- Linear Guide Carriage Assembly supports radial loads up to 12 lbf.
- Has a dynamic load capacity of 24 lbf.
- Features a ball carriage type for use with vee profile rails.
Top product applications:
- Robotics and automation systems
- Medical devices and equipment
- Precision machinery and assembly lines
Linear Guide Carriage Assembly, Carriage Height 20.7 mm, Carriage Length 113.5 mm, Carriage Width 24 mm, Carriage Material Aluminum, Roller Material Aluminum, Radial Load - Maximum 12 lbf, Axial Load - Maximum 17 lbf, Manufacturer Size 1, Dynamic Load Capacity 24 lbf, Requires Lubrication Lubricant Required, Carriage Type Ball, For Rail Width 26 mm, For Use With Vee Profile, Static Load Capacity 24 lbf, Combined Carriage and Rail Height 26.3 mm, Series PW
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 3 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.00
- Package Width: 1.50
- Package Height: 1.00
- Package Weight: 0.21
Product info last updated on February 19, 2026 7:12pm UTC
Category: Bearings, V-belts and Power Transmission Equipment
