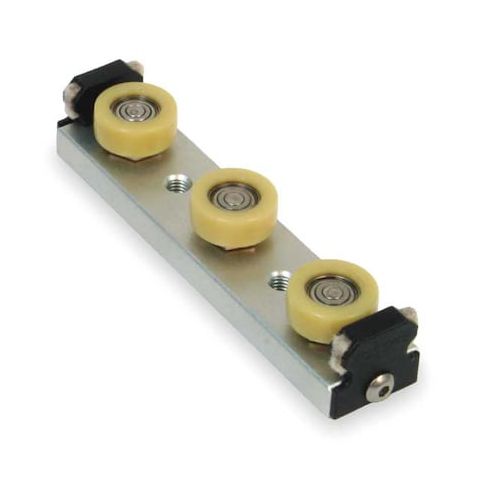

Carriage Assembly, 17.7 x 18 x 79.9 mm MPN:UT0WPAPR
Carriage Assembly, 17.7 x 18 x 79.9 mm
The Bishop-Wisecarver Linear Guide Carriage Assembly is a precision-engineered component designed for applications requiring smooth, precise motion. With a compact footprint of 17.7 x 18 x 79.9 mm and a maximum radial load capacity of 12 lbf, this carriage assembly is ideal for use in robotics, automation, and precision machinery. Its aluminum construction and ball-bearing design ensure low friction and long lifespan, making it suitable for applications such as pick-and-place systems, CNC machines, and medical devices. With a lead time of just 3 days, this carriage assembly is a reliable choice for manufacturers seeking high-performance motion solutions.
Top product features:
- Linear Guide Carriage Assembly provides a maximum radial load capacity of 12 lbf.
- The carriage is designed with a ball type and requires lubrication for optimal performance.
- The carriage has a dynamic load capacity of 12 lbf and a static load capacity of 12 lbf.
Top product applications:
- Robotics and Automation
- Automotive Manufacturing
- Medical Device Assembly
Linear Guide Carriage Assembly, Carriage Height 17.7 mm, Carriage Length 79.9 mm, Carriage Width 18 mm, Carriage Material Aluminum, Roller Material Aluminum, Radial Load - Maximum 12 lbf, Axial Load - Maximum 0 lbf, Manufacturer Size 0, Dynamic Load Capacity 12 lbf, Requires Lubrication Lubricant Required, Carriage Type Ball, For Rail Width 20 mm, For Use With Vee Profile, Static Load Capacity 12 lbf, Combined Carriage and Rail Height 23.1 mm, Series PW
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 3 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.50
- Package Width: 2.00
- Package Height: 1.00
- Package Weight: 0.10
Product info last updated on February 10, 2026 5:10am UTC
