Scissor Pallet Lift Cart, 1100 lb. Cap, Steel MPN:LVE-50E

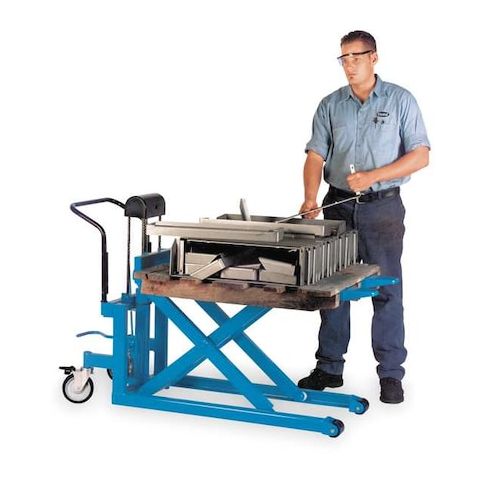

• The Bishamon LVE-50E is a battery-powered, high-lift scissor skid jack designed to raise open-bottom pallets and skids from floor level to a raised working height. Its fork-style platform fits open pallets that standard pallet jacks aren't shaped to access, lifting loads to reduce the bending and reaching involved in floor-level work.

  This is the narrow-fork model, with fixed forks measuring 42 1/2 in. long and 6 in. wide, set 8 1/2 in. apart for a total width across the forks of 20 1/2 in. A chain-and-hydraulic lift mechanism raises the platform from a lowered height of about 3 1/4 in. up to 32 3/4 in., reaching full height in roughly 7 seconds. The lift is operated by push-button control and powered by a 12V DC battery, with an on-board charger (36 Ah, 12V DC, 4-hour charge) and the battery and charger included.

  The unit is built on a steel frame and base, finished in blue, and rolls on polyurethane non-marking casters — one swivel caster with a brake and two rigid casters, all 6 in. diameter — for manual push mobility across concrete. It has a raised steel push handle, a 39 1/4 in. back rest, and a non-tilting fixed platform. Overall, it measures 61 3/4 in. long, 24 in. wide, and 42 1/2 in. high, and weighs 340 lb.

  Key Features:

  • - MFR #: LVE-50E ·
  • Brand: Bishamon ·
  • Color: Blue
  • - Type: High-lift scissor pallet jack / skid lift ·
  • For: open pallets only
  • - Load capacity: see note below (spec field: 1,000 lb
  • title: 1,100 lb)
  • - Lift mechanism: chain/hydraulic ·
  • Lift control: push button ·
  • Up speed: ~7 sec
  • - Power: 12V DC battery ·
  • Charger: on-board, 12V DC, 36 Ah, 4 hr charge ·
  • Includes: battery, charger
  • - Lifting height range: ~3 1/4 in. to 32 3/4 in.
  • - Fork style: narrow, fixed ·
  • Fork: 42 1/2 in. L × 6 in. W × 3 1/4 in. thick
  • - Width across forks: 20 1/2 in. ·
  • Width between forks: 8 1/2 in.
  • - Platform: 42 1/2 in. L × 20 1/2 in. W, fixed, non-tilting
  • - Casters: (1) swivel w/ brake, (2) rigid
  • polyurethane, non-marking, 6 in. dia.
  • - Handle: raised steel, 41 1/8 in. ·
  • Back rest height: 39 1/4 in.
  • - Overall: 61 3/4 in. L × 24 in. W × 42 1/2 in. H ·
  • Weight: 340 lb
  • - Frame/base: steel ·
  • For surface: concrete
