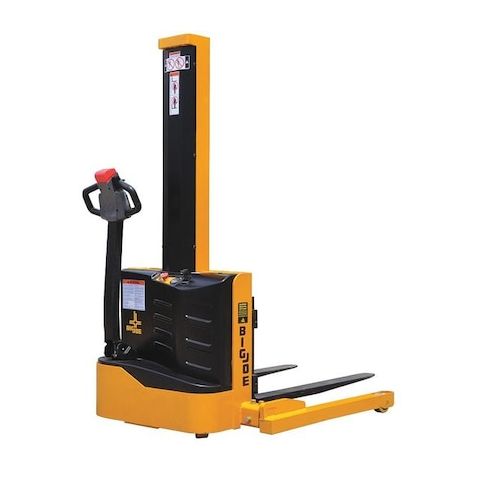

Walkie Straddle Stacker, Electric, 2, 200 lb Capacity, 62 in Lift, Adjustable Forks, S22-62 MPN:S22-62
The Big Joe 76-1/2in H Straddle Stacker is a powerful and versatile material handling solution, ideal for warehouses, factories, and distribution centers. With a load capacity of 2200 lb and adjustable straddle design, this stacker can handle a variety of tasks, from palletizing to inventory management. The hydraulic lift mechanism and push-button control ensure safe and efficient operation, while the adjustable forks accommodate different pallet sizes. Suitable for use in various industries, including manufacturing, retail, and logistics, this straddle stacker provides a reliable and cost-effective solution for businesses looking to optimize their material handling processes.
Top product features:
- Powered lift control with push button operation
- Adjustable straddle base for versatile use
- Hydraulic lift mechanism for efficient load handling
Top product applications:
- Warehouse Storage and Organization
- Material Handling in Manufacturing Facilities
- Heavy-Duty Logistics and Shipping Operations
The BIG JOE S22-62 is a walkie straddle stacker with a rated load capacity: 2,200 lb. It ships assembled and operates as a powered unit with a hydraulic lift and electric lift/push drive
- lift voltage is 24V DC and maximum lifting height is 62 in (5 ft 2 in). Overall dimensions are 62 in L x 56 in W x 76 1/2 in H (76 1/2 in overall height with forks lowered
- 98 1/4 in with forks raised) and the unit weight is 1,200 lb.
Key Features:
- Item: Walkie Straddle Stacker — rated load capacity: 2,200 lb
- Lift: Hydraulic mechanism, push-button lift control, lifting range 1 in to 62 in (maximum 5 ft 2 in
- minimum 1 in)
- Power: Powered operation
- lift voltage 24V DC
- power connection type: Plug In
- Batteries/Charging: (2) sealed lead acid Polycase batteries, 85 Ah, on-board charger (110 V AC)
- rated charge time: 4 hr
- rated run time: 4 hr (manufacturer ratings)
- Drive and steering: drive motors (efficiency rating not specified)
- variable speed drive control
- 180° steering arc
- turning radius 4 ft 4 in
- Wheels: Drive wheel 8 1/4 in dia x 2 3/4 in wide (polyurethane)
- rear wheel 8 in dia
- axle-mounted solid polyurethane wheels 4 in dia x 2 7/8 in wide
- front/rear caster dia 4 in
- caster wheel type (2) polyurethane
- Base: Adjustable straddle/adjustable straddle lift base
- base inside width 38–50 in
- base outside width 44–56 in
- base legs inside dim. 38–50 in
- base legs outside dim. 46–58 in
- Forks: Adjustable fork type, length 42 in, fork width 4 in, fork thickness 1 1/2 in
- width across forks 29 1/2 in
- width between forks 8 in
- invertible forks: No
- Materials and construction: Welded steel frame, powder-coated finish, frame type flat back, base material steel
- Controls and user features: Handle with reversing switch and horn
- battery discharge indicator
- Application notes: For pallet type open/closed
- for surface type concrete
- Includes: (2) Polycase batteries and internal charger
- Standards: Standards referenced: OSHA
- Assembly: Assembled
Additional Information
- Country of Origin: CN
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 72.00
- Package Width: 47.00
- Package Height: 83.00
- Package Weight: 1220.00
- California Prop 65 Warning: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
