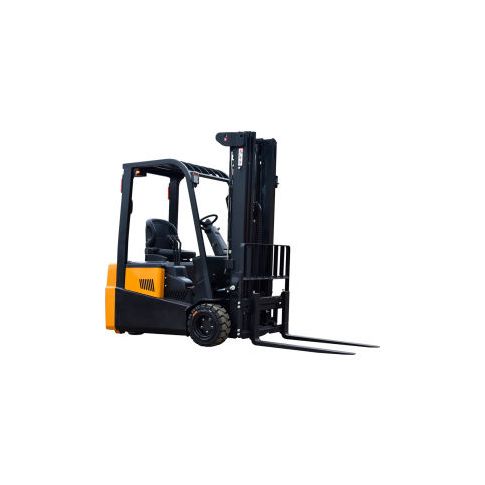

Big Joe LVE35 Lithium Forklift 3500 lbs Cap 189H Lift Onboard Single-Phase Charger 120VAC/240VAC LVE35-189
Big Joe LVE35 Lithium Forklift 3500 lbs Cap 189H Lift Onboard Single-Phase Charger 120VAC/240VAC
The Big Joe LVE35 Lithium Forklift is designed for maximum efficiency and maneuverability, ideal for companies looking to upgrade to lithium-ion battery technology at a low cost of ownership. With a 3500lb capacity and dual 80v drive motors, this three-wheel model delivers exceptional performance and productivity. Features include an onboard 120vac charger that can be upgraded to 240vac, eliminating the need for eye wash stations and regular battery maintenance. Suitable for a range of applications, including warehouses, manufacturing facilities, and distribution centers, the LVE35 Lithium Forklift offers a reliable and cost-effective solution for heavy-duty lifting needs.
Top product features:
- Dual 80V drive motors for exceptional performance and maneuverability
- Recognized 80V 230Ah lithium-ion battery onboard
- Single-phase 120VAC onboard charger upgradable to 240VAC
Top product applications:
- Warehouse Storage and Retrieval
- Material Handling and Logistics
- Automated Manufacturing and Assembly
The lve35 sprint was uniquely designed from the ground up to help companies take maximum advantage of the latest in lithium-ion battery technology at a low cost of ownership.The new sprint is a 3500lb capacity three-wheel model that features dual 80v drive motors to deliver exceptional performance and maneuverability.The sprint comes standard with a single phase 120vac onboard charger which can be upgraded to 240vac which willmake deployments far simpler and less expensive than typical electric forklifts and eliminates the need for eye wash stations mid-lift battery replacement or regular battery maintenance needed with traditional electric forklifts. Features ul style"margin-top0px; padding-top 5px; padding-bottom 5px;" dual ac drive motors for exceptional maneuverability ul recognized 80v 230ah li-ion battery onboard 120vac charger upgradable to 240vac(15/35amp) run time of 4-4.5 hours of continuous operation opportunity charge at rate of up to 12% every 15 minutes programmable digital diagnostic display sideshift functionality for added productivity dual read steer tires for improved stability fork dimensions - 42" standard and 48" optional
Additional Information
- UNSPSC: 23101513
- Brand: Big Joe - Big Lift LLC
- Color: Yellow
- Package Quantity: 1
- Country of Origin: CN
- FOB Origin: WI
- Ships by: TRUCK
- Freight Class: 175
- Comes in a kit: No
- Newly added to catalog: No
- Item is on Clearance: No
- Contains Hazardous Materials: Yes
- CA Proposition 65 Applies: No
- Package Length: 111.50
- Package Width: 42.10
- Package Height: 88.20
- Package Weight: 7645.00
Product info last updated on January 24, 2026 8:14am UTC
Category: Forklifts and Attachments
