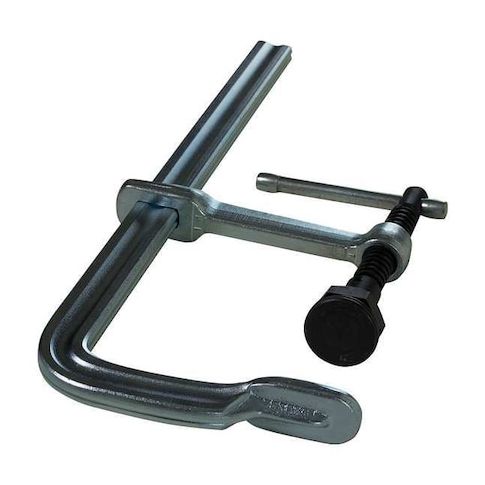

18 in Bar Clamp, Steel Handle and 4 3/4 in Throat Depth MPN:SGL-18
Free Shipping
In Stock
The BESSEY SGL-18 Bar Clamp is a versatile and essential tool for industrial settings, providing firm pressure over an extended area for applications such as gluing, fastening, and machining. With a sturdy steel rail and a clamping force of 1,800 lb, this clamp ensures a secure hold on large workpieces. Its 18 in jaw opening and 4 3/4 in throat depth make it suitable for a wide range of projects, from woodworking to metalworking. The swivel pad and replaceable swivel mechanism allow for easy adaptation to different project shapes, making it a reliable and efficient addition to any workshop or factory.
Top product features:
- The bar clamp features a long rigid steel bar with a stationary head at one end and a movable head on the other end.
- The clamp provides a force of 1,800 lb when fully tightened, ensuring a secure hold.
- The clamp includes a swivel pad that conforms to numerous project shapes.
Top product applications:
- Gluing
- Fastening
- Machining operations in industrial settings
The BESSEY - SGL-18 is a Bar Clamp. This type of tool features a long rigid steel bar with a stationary head at one end and a movable head on the other end. The movable head can slide and be locked in place to apply pressure onto a workpiece. It is an essential tool for applications requiring firm pressure over an extended area, such as gluing, fastening, or machining operations in industrial settings.
Key Features of the BESSEY - SGL-18 Bar Clamp:
- Bar Material: Made with a steel rail for sturdy and long-lasting usage.
- Dimensions: The bar of this clamp has a width of 1 1/16 in and thickness of 9/16 in, providing a substantial surface area for clamping.
- Clamping Force: The clamp provides a force of 1,800 lb when fully tightened, ensuring a secure hold.
- Clamping Capacity: With a jaw opening of up to 18 in, this product offers sufficient clamping breadth for large workpieces.
- Handle Material and Length: The steel handle measures 4 11/16 in, lending a firm grip during application.
- Swivel Pad and Type: The clamp includes a swivel pad that conforms to numerous project shapes. The swivel mechanism is replaceable for your convenience.
- Throat Depth: The clamp has a throat depth of 4 3/4 in, indicating how far the clamp can reach into the workpiece.
- Screw Size: This product features a 45/64 in screw size for adjusting the clamp.
Additional Information
- Country of Origin: DE
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 24.40
- Package Width: 7.20
- Package Height: 1.30
- Package Weight: 6.60
