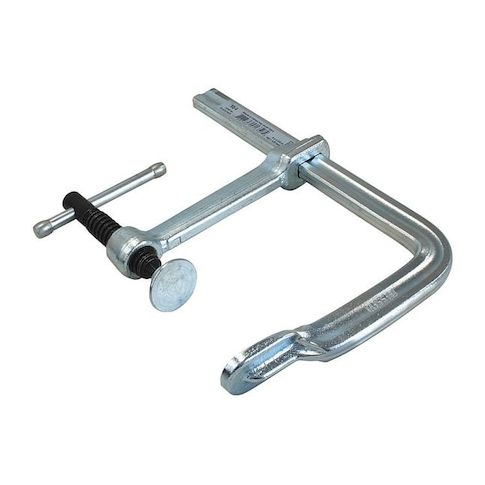

6" Bessey Shop Clamp MPN:SQ-4

The BESSEY - SQ-4 Bar Clamp is a practical industrial clamping tool. Designed to apply pressure uniformly across a workpiece during various applications such as assembly, woodworking, gluing, and metalworking, this bar clamp is equipped with a durable steel bar. It features a fixed head at one end and an adjustable sliding head at the other, utilizing a Bar Slide mechanism for easy adjustment of its clamping capacity.

Key Features of the BESSEY - SQ-4 Bar Clamp:

• Application: This bar clamp is intended for industrial use in situations such as assembly, woodworking, gluing, and metalworking.
• Frame Material: The rigid steel bar aims to provide consistent clamping performance.
• Clamping Force: Rated for a maximum axial clamping force of 2,660 lb when fully tightened, conditions permitting.
• Dimensions: With a bar size of 55/64 in, bar thickness of 13/32 in, and a max jaw opening of 6 in, this clamp offers a versatile size to accommodate several workpiece dimensions.
• Handle: A steel handle of length 4 5/8 in is incorporated for potential comfortable grip and operation, varying on individual usage.
• Includes: The package includes a standard rail profile and a standard pad to aid in assembly and clamping tasks.
• Jaw Pad: A standard jaw pad with a width of 1 1/2 in is intended for reducing workpiece marring during the clamping process, results may vary.
