Lever Clamp 20" MPN:LC-20

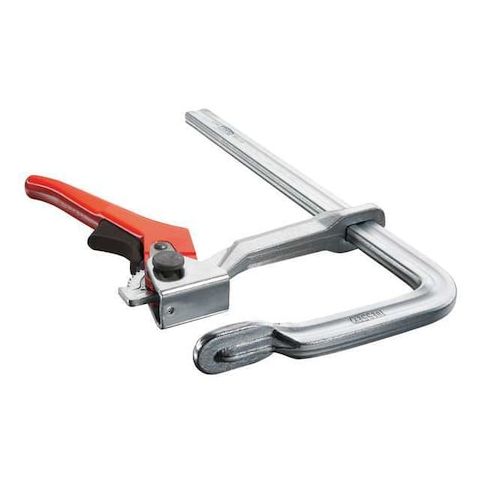

The BESSEY - LC20 is a steel Bar Clamp, a fundamental tool in assembly, fabrication, and general workholding tasks. It is composed of a rigid bar with a fixed head and an adjustable sliding end. The sliding head moves along the rail using a mechanism commonly termed as the 'Bar Slide'. It can be secured into position, applying pressure as necessary to the workpiece. The clamp fastens with a rapid-action lever system intended to assist in maintaining the position of the workpiece during various processes such as gluing, fastening, or machining.

Key Features of the BESSEY - LC20 Bar Clamp:

• Bar Material and Dimensions: As the central load-bearing component, the bar is made of durable and strong steel. It measures 1 1/8 inches in thickness and 7/16 inches in width.
• Clamping Force: Furnishing a maximum clamping force of 1,200 lb, it provides significant clamping pressure for diverse tasks.
• Handle Specifications: The handle, essential for managing the fastening and releasing of the clamp, is crafted from steel and measures 6 inches in length. Its design incorporates a lever for operating the fastening mechanism.
• Jaw Pad Type: The jaw pad features a pivot function to adjust to workpieces of varied shapes and surfaces. This is intended to aid in maintaining a grip on the workpiece.
• Clamping Capacity: With a wide-opening capacity of 20 inches, the clamp can hold larger or extended workpieces for a broad array of tasks.
• Throat Depth: The clamp's 4 3/4 inches throat depth signifies its reach into the workpiece, accommodating pieces of various thicknesses.
