Classix Sliding Arm Clamp 4" MPN:GS12-8K

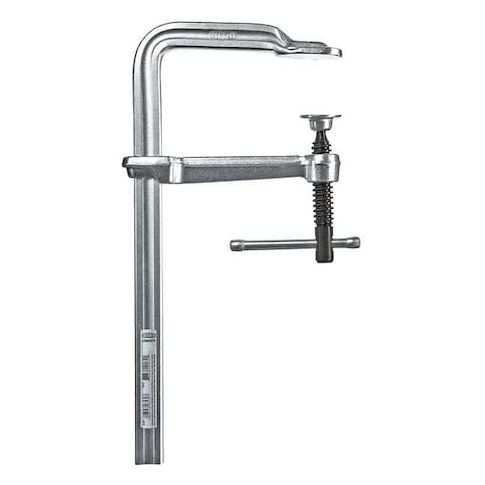

The BESSEY - GS12-8K is a bar clamp, constructed with a rigid steel bar and fixed and sliding heads that lock to apply pressure. It is intended for use in assembly, woodworking, gluing, metalworking, etc. The Bar Clamp operates with a profiled rail bar type.

Key Features of the BESSEY - GS12-8K Bar Clamp include:

• Bar Specifications: The clamp's bar is made of steel with dimensions of 9/32 in, 5/8 in, and a width of 5/16 in.
• Clamping Capacity: It has a clamping capacity of 4 in with a maximum clamping force of 550 lb.
• Handle Specifications: The clamp is equipped with a sliding T-handle design, made from tempered drop-forged steel. The handle length is 3 3/16 in.
• Jaw Pad Type: The clamp uses a swivel jaw pad, perfect for contact on non-flat surfaces.
• Sliding Mechanism: The Bar Clamp utilizes a Bar Slide mechanism enabling movement of the sliding jaw along the bar.
• Swivel Type: The swivel mechanism is non-replaceable.
• Load Capacity: The Bar Clamp has a maximum load of 550 lb.
