Mounitng Heights MPN:CHD10-2072AB-G
Mounitng Heights

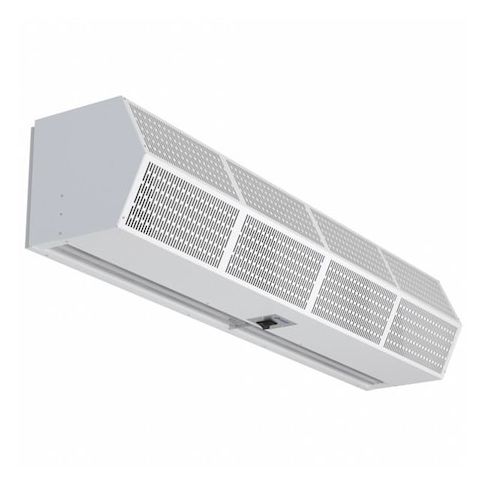

Protect your facility from temperature fluctuations, insects, and air leaks with the Berner Mounting Heights Galvanized Steel Air Curtain. This 6-foot wide air curtain is designed for frame openings and can be mounted at 10 feet to control temperature or 8 feet for insect control. With a maximum air velocity of 2,062 fpm and a sound level of 69 dBA, this air curtain provides efficient and quiet operation. Suitable for a variety of applications, including warehouses, loading docks, and entryways, it helps maintain a consistent indoor climate while keeping unwanted pests and debris out.
Top product features:
- Heated/Not Heated Not Heated, indicating that this air curtain does not provide heat.
- Maximum Air Velocity 2,062 fpm, allowing for a high volume of air to be circulated.
- Maximum Air Volume 3,608 cfm, providing a substantial amount of air to be circulated.
Top product applications:
- Temperature Control in Greenhouses
- Insect Control in Warehouses
- Air Purification in Commercial Kitchens
Unhtd 14 In.H 75 In.W 15 In.D Galv St Air Curtain, For Frame Opening Width 6 ft, Mounting Height for Temperature Control 10 ft, Overall Depth 14 1/2 in, Overall Height 14 in, Overall Width 75 in, Profile Type Standard Profile, Heated/Not Heated Not Heated, Maximum Air Velocity 2,062 fpm, Mounting Height for Insect Control 8 ft, Maximum Air Volume 3,608 cfm, Nameplate Voltage 208V AC, Air Temperature Rise Not Applicable, Sound Level @ 10 ft 69 dBA, Housing Color White, Phase 1
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 15 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 80.00
- Package Width: 22.00
- Package Height: 27.00
- Package Weight: 154.00
Product info last updated on February 5, 2026 3:29pm UTC
Category: Fans
