Mounitng Heights MPN:CHD10-1048AJ-G
Mounitng Heights

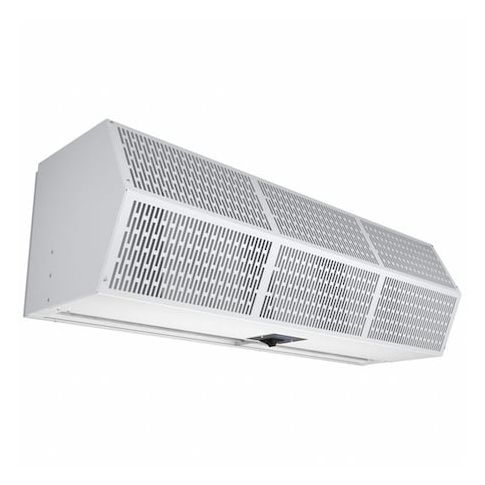

The Mounitng Heights from Berner is a reliable and efficient air curtain designed for frame opening widths of up to 4 feet. Ideal for temperature control, it can be mounted at 10 feet to effectively keep warm air in and cold air out. Alternatively, it can be mounted at 8 feet for insect control. With a maximum air velocity of 1,515 fpm and a sound level of 66 dBA, this air curtain is perfect for commercial and industrial settings, such as warehouses, restaurants, and healthcare facilities. Its compact design and ease of installation make it a convenient solution for various applications.
Top product features:
- Galvanized steel air curtain provides durability and resistance to corrosion
- Heats air to create a temperature-controlled zone, not applicable for air temperature rise
- Air curtain is designed to control insects at a mounting height of 8 ft
Top product applications:
- Commercial kitchen exhaust fans
- Industrial air circulation systems
- Restaurant and food service ventilation
Unhtd 14 In.H 51 In.W 15 In.D Galv St Air Curtain, For Frame Opening Width 4 ft, Mounting Height for Temperature Control 10 ft, Overall Depth 14 1/2 in, Overall Height 14 in, Overall Width 51 in, Profile Type Standard Profile, Heated/Not Heated Not Heated, Maximum Air Velocity 1,515 fpm, Mounting Height for Insect Control 8 ft, Maximum Air Volume 1,768 cfm, Nameplate Voltage 240V AC, Air Temperature Rise Not Applicable, Sound Level @ 10 ft 66 dBA, Housing Color White, Phase 1
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 15 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 56.00
- Package Width: 22.00
- Package Height: 27.00
- Package Weight: 124.00
Product info last updated on February 1, 2026 2:02am UTC
Category: Fans
