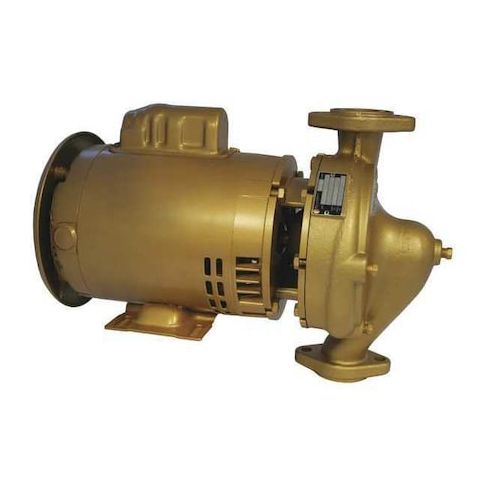

Circulating Pump, E90 BE9014S Series, 1 hp, Bronze, 2 in Flanged, 115/208-230V AC MPN:179324LF
The Bell and Gossett Hot Water Circulating Pump is a reliable and efficient solution for circulating hot water in potable systems. With 1 horsepower and a maximum head of 30 feet, this pump is suitable for a wide range of applications, including residential and commercial buildings. Its compact design and single-phase operation make it easy to install and integrate into existing systems. By circulating hot water efficiently, this pump helps to maintain optimal water temperature and reduce energy consumption, making it an ideal choice for buildings that require precise temperature control.
Top product features:
- Circulates hot water to maintain temperature in potable systems
- Provides a maximum of 30 feet of head
- Operates at 1 horsepower with a single speed
Top product applications:
- Hot water circulation in residential buildings
- Heating system circulation in commercial buildings
- Hot water circulation in large residential units (e.g. apartments)
The BELL & GOSSETT 179324LF is a 1 hp hot water circulating pump (Series BE9014S, Series Family E90) with a single-speed, single-phase motor rated for operation at 115/208–230 V AC, 60 Hz and a rated maximum speed: 1725 RPM. It is rated for continuous duty, includes a flange connection and volute, and has 2 in inlet and outlet connections for circulating water, with a rated flow: 160 gpm at 14 ft head and a rated shut-off head: 30 ft.
Key Features:
- Item: Circulating Pump
- Series BE9014S (E90)
- Horsepower: 1 hp
- Number of speeds: 1
- Phase: Single
- Nameplate Voltage: 115/208–230 V AC
- Hz: 60
- Rated maximum speed: 1725 RPM
- Amps: Nameplate current: 7.7–15.2 A (varies by voltage
- see product nameplate for exact values)
- Duty: Rated for continuous duty
- Connection Standard: Flange
- Includes Flange
- Includes Volute
- Inlet/Outlet Size / Compatible Intake/Discharge Pipe Size / For Inlet/Discharge Pipe Diameter: 2 in
- Compatible Media Type: Water
- Specified by the manufacturer for use with potable water systems
- Low-lead designation indicated: CE
- Max. GPM @ Head: Rated flow: 160 gpm at 14 ft head
- Rated shut-off head: 30 ft
- Rated maximum operating pressure: 175 psi
- Media Temperature Range: Rated media temperature range: -10 to 200 °F
- Pump Housing / Casing Material: Bronze
- Impeller Type: Closed
- Impeller Material: ASTM
- Shaft Material: Stainless Steel
- Motor Type / Frame: 56J (NEMA 56J)
- Motor Enclosure Design: Open Drip Proof
- Motor Ambient Temp. Rating: 40 °C
- Face to Face Dimension: 11 1/2 in
