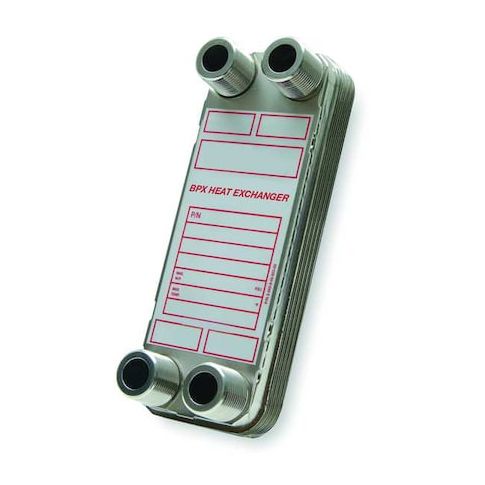

Heat Exchanger, Brazed Plate, 120 Plates MPN:BPDW415-120 LCA
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G3546803
Heat Exchanger, Brazed Plate, 120 Plates
The Bell and Gossett Brazed Plate Heat Exchanger is a high-performance solution for efficient heat transfer in various applications. Ideal for use in industrial processes, oil and gas, and HVAC systems, this heat exchanger features 120 plates for optimal heat dissipation, with a water capacity of 1,566,533 Btu/H and oil capacity of 450,000 Btu/H. Its compact design and robust construction make it suitable for applications where space is limited, while its wide temperature range (-310°F to 450°F) and high pressure rating (435 psig) ensure reliable performance in demanding environments.
Top product features:
- Heat dissipation capacity for water is 1,566,533 BtuH
- Heat dissipation capacity for oil is 450,000 BtuH
- Maximum operating temperature is 450 Degrees F
Top product applications:
- Heat Exchanger for HVAC Systems
- Chemical Processing Plants for Oil and Water Heat Exchange
- Industrial Refrigeration Systems for Cooling and Heating
Heat Exchanger, Heat Exchanger Type Braze Plate, Mounting Stud Thread Size 3/8 In.-16, Heat Dissipation Capacity for Water 1,566,533 BtuH, Heat Dissipation Capacity for Oil 450,000 BtuH, Total Surface Area 63.25 sq ft, Overall Height 20 3/4 in, Overall Width 4 3/8 in, Overall Depth 13 7/8 in, Maximum Pressure Rating 435 psig, Maximum Operating Temperature 450 Degrees F, Minimum Operating Temperature -310 Degrees F, Flow Capacity 50 gpm, Pipe Connection Size 1 in
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 30 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 24.50
- Package Width: 9.00
- Package Height: 17.50
- Package Weight: 130.00
Product info last updated on January 18, 2026 7:21am UTC
Category: HVACR and Appliance Controls
