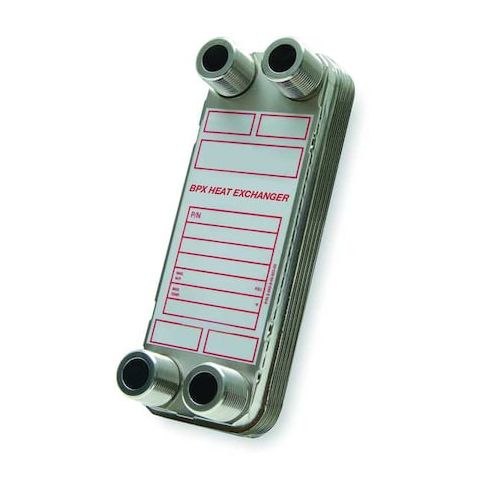

Heat Exchanger, Brazed Plate, 317, 243 BTU MPN:BPDW415-20 LCA
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G3522741
Heat Exchanger, Brazed Plate, 317, 243 BTU
The Bell and Gossett Brazed Plate Heat Exchanger is a high-performance solution for efficient heat transfer in a variety of applications. Ideal for use in industrial processes, HVAC systems, and oil and gas operations, this heat exchanger offers a heat dissipation capacity of up to 317,243 Btu/H for water and 78,000 Btu/H for oil. With a compact design and robust construction, it can withstand extreme temperatures (-310°F to 450°F) and pressures (up to 435 psig). Its 9.65 sq ft surface area and 50 gpm flow capacity make it a reliable choice for applications requiring high heat transfer rates and efficient cooling.
Top product features:
- Brazed plate construction for high heat transfer efficiency
- Heat dissipation capacity for water of 317,243 BtuH
- Maximum operating temperature of 450 Degrees F for high temperature applications
Top product applications:
- Industrial process cooling systems
- Commercial HVAC systems
- Oil and gas industry heat transfer applications
Heat Exchanger, Heat Exchanger Type Braze Plate, Mounting Stud Thread Size 3/8 In.-16, Heat Dissipation Capacity for Water 317,243 BtuH, Heat Dissipation Capacity for Oil 78,000 BtuH, Total Surface Area 9.65 sq ft, Overall Height 20 3/4 in, Overall Width 4 3/8 in, Overall Depth 2 5/8 in, Maximum Pressure Rating 435 psig, Maximum Operating Temperature 450 Degrees F, Minimum Operating Temperature -310 Degrees F, Flow Capacity 50 gpm, Pipe Connection Size 1 in
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 30 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 24.70
- Package Width: 8.70
- Package Height: 10.10
- Package Weight: 27.39
Product info last updated on February 10, 2026 11:41pm UTC
Category: HVACR and Appliance Controls
