Heat Exchanger, Brazed Plate, 535K BTU MPN:BPN412-50 LCA
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G3519083

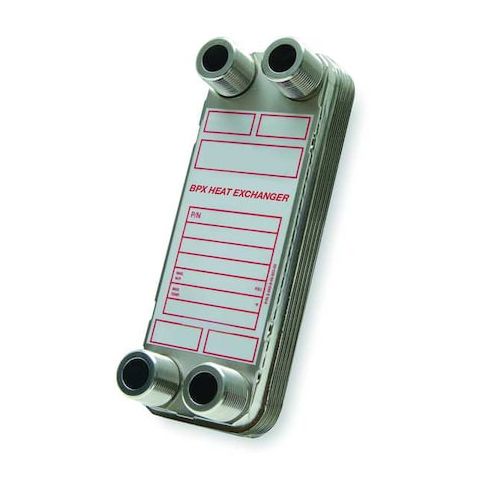

Heat Exchanger, Brazed Plate, 535K BTU
The Bell and Gossett Brazed Plate Heat Exchanger is a high-performance solution for efficient heat transfer and dissipation. Suitable for various applications, including industrial processes and HVAC systems, it effectively transfers heat between water and oil, with capacities of 535,000 BTU/h for water and 77,000 BTU/h for oil. Its compact design, measuring 12.25 inches in height, 4.375 inches in width, and 5.5 inches in depth, makes it ideal for space-constrained environments. The heat exchanger's stainless steel construction and maximum operating temperature of 450°F ensure durability and reliability in demanding conditions.
Top product features:
- Brazed plate construction for high heat transfer efficiency
- Heat dissipation capacity for water of 535,000 BtuH
- Maximum operating temperature of 450 Degrees F for high-temperature applications
Top product applications:
- HVAC Systems for Large Commercial Buildings
- Industrial Process Cooling Systems
- High-Temperature Oil Cooling Systems
Heat Exchanger, Heat Exchanger Type Braze Plate, Heat Dissipation Capacity for Water 535,000 BtuH, Heat Dissipation Capacity for Oil 77,000 BtuH, Total Surface Area 13.49 sq ft, Overall Height 12 1/4 in, Overall Width 4 3/8 in, Overall Depth 5 1/2 in, Maximum Pressure Rating 435 psig, Maximum Operating Temperature 450 Degrees F, Minimum Operating Temperature -190 Degrees F, Flow Capacity 50 gpm, Pipe Connection Size 1 in, Channel Plate Material Stainless Steel
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 40 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.50
- Package Width: 8.10
- Package Height: 11.90
- Package Weight: 22.70
