Steam Trap, 125 psi, Brass, 3/4 in, 2 Ports MPN:8C-S-3-125
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G1233321

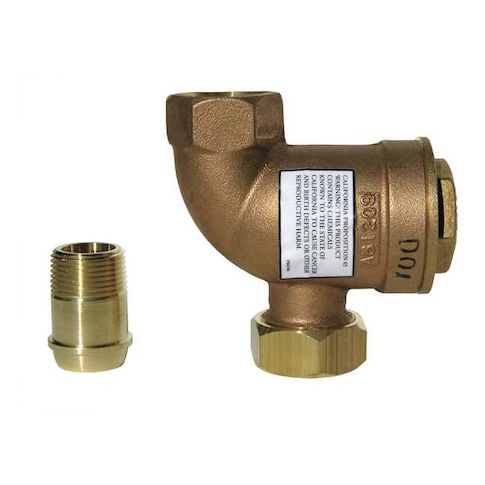

Steam Trap, 125 psi, Brass, 3/4 in, 2 Ports
This high-performance Steam Trap from Bell and Gossett is designed for demanding applications, including convectors, steam kettles, evaporators, and heating coils. Its 125 psi rating and 353F temperature range ensure reliable operation, while its 4,200 lb/hr condensate capacity meets the needs of large-scale steam systems. The offset configuration and air vent feature simplify installation and maintenance. Suitable for use in sterilizers, steam tracing, and unit heaters, this steam trap is a valuable addition to any industrial or commercial steam system, providing efficient condensate removal and helping to prevent energy losses and equipment damage.
Top product features:
- Handles high-pressure steam up to 125 psi
- Condenses condensate at high temperatures up to 353F
- Includes an air vent to prevent airlocks and ensure efficient condensate removal
Top product applications:
- Convectors
- Steam Kettles
- Heating Coils
Steam Trap, Application Convectors, Steam Kettles, Evaporators, Heating Coils, Radiators, Sterilizers, Steam Tracing, Unit Heaters, Body Material Brass, Condensate Capacity 4,200 lb/hr, Configuration Offset, Distance Between Inlet and Outlet Port 3 3/16 in, Includes Air Vent Air Vent Included, Inlet Port Connection Gender Female, Inlet Port Connection Size 3/4 in, Inlet Port Connection Type NPT, Installation Orientation Horizontal, Manufacturer Series 8C
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.80
- Package Width: 3.70
- Package Height: 2.60
- Package Weight: 2.00
- California Prop 65 Warning: WARNING: Reproductive Harm - www.P65Warnings.ca.gov
Product info last updated on January 26, 2026 9:58pm UTC
Category: HVACR and Appliance Controls
