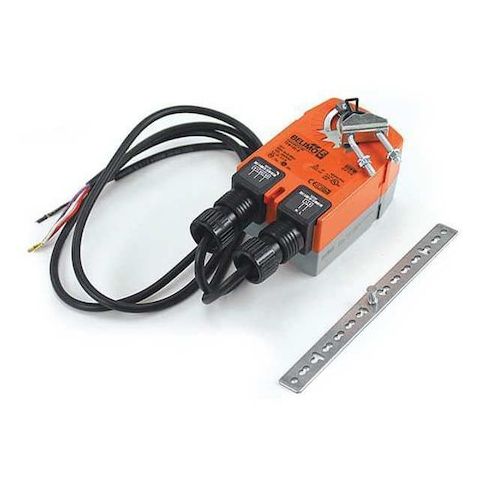

Actuator, Spring Return On/Off, 120V, No.22 MPN:TFB120-S
Actuator, Spring Return On/Off, 120V, No.22
This Belimo actuator is designed for use in building automation systems, providing a reliable and efficient solution for controlling dampers in various applications. With a spring return feature, it ensures the damper returns to its original position when the actuator is de-energized. The actuator's 22 in-lb rated torque and 95-degree stroke degree make it suitable for a range of damper sizes. It is compatible with NEMA rating 2 and IP42, making it ideal for use in harsh environments. This actuator is perfect for use in commercial and industrial settings, offering a cost-effective and reliable solution for controlling dampers.
Top product features:
- Spring Return Actuator allows for automatic return to the original position after a signal is removed
- Rated Torque of 22 in-lb enables precise control of valve applications
- SPDT Contact Form enables switching between two different electrical circuits
Top product applications:
- Damper Actuator for Building Automation Systems
- Spring Return Actuator for HVAC Dampers
- Valve Actuator for Control Valve Applications
Actuator, Valve Application Damper, Signal Type On/Off, Rated Torque 22 in-lb, Input Voltage 100 to 240V AC, Output Signal Not Applicable, Contact Form SPDT, Electrical Connection Type Hardwired, For Use With Building Automation Systems Building Automation System Compatible, NEMA Rating 2, IP Rating IP42, Spring Return Spring Return, Time to Close 75 sec, Shaft Type 1/4 in to 1/2 in Round or 1/4 in to 5/16 Square, Shaft Rotation CW/CCW, Stroke Degree 95 Degrees , Mounting Type Direct Mount
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 9.00
- Package Width: 4.60
- Package Height: 3.40
- Package Weight: 1.87
Product info last updated on March 25, 2026 3:09am UTC
Category: Pipes, Valves and Fittings
