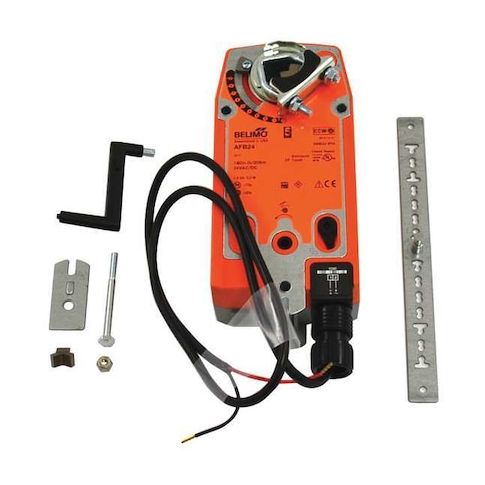

Spring Return Damper Actuator, 24VAC/DC MPN:AFB24
Spring Return Damper Actuator, 24VAC/DC
The Belimo Spring Return Damper Actuator is a reliable and efficient solution for building automation systems, offering a 180 in-lb rated torque and 24VAC/DC input voltage. This actuator is ideal for valve applications and features a spring return mechanism for smooth operation. With a time to close of 75 seconds and a maximum operating temperature of 122°F, it can withstand various environmental conditions. Compatible with NEMA Rating 2 and IP54, it provides protection against dust and water. Suitable for use in various applications, including HVAC and air handling systems, this actuator ensures precise control and long-lasting performance.
Top product features:
- Spring Return Damper Actuator provides a spring return mechanism for automatic repositioning of the damper after actuation.
- Actuator has a rated torque of 180 in-lb, allowing for sufficient control over the damper.
- The actuator has a time to close of 75 seconds, enabling precise control over the damper's movement.
Top product applications:
- Building Automation System
- HVAC System
- Air Handling Unit
Actuator, Valve Application Damper, Signal Type On/Off, Rated Torque 180 in-lb, Input Voltage 24V AC/DC, Output Signal Not Applicable, Contact Form SPDT, Electrical Connection Type Hardwired, For Use With Building Automation Systems Building Automation System Compatible, NEMA Rating 2, IP Rating IP54, Spring Return Spring Return, Time to Close 75 sec, Shaft Type 1/2 in to 1-3/64 in Round, Shaft Rotation CW/CCW, Stroke Degree 95 Degrees , Maximum Operating Temperature 122 Degrees F
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 12.00
- Package Width: 6.20
- Package Height: 4.20
- Package Weight: 5.25
Product info last updated on February 23, 2026 6:49pm UTC
Category: HVAC Parts
