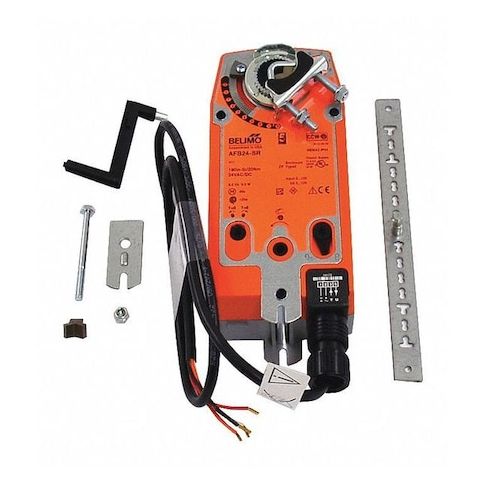

Spring Return Damper Actuator, 24VAC/DC MPN:AFB24-SR
Spring Return Damper Actuator, 24VAC/DC
This Spring Return Damper Actuator from Belimo is a reliable and efficient solution for building automation systems, providing precise control over damper valves in commercial and industrial applications. Its proportional signal type and 180 in-lb rated torque ensure smooth and accurate operation, while its 24V AC/DC input voltage and NEMA rating 2 make it suitable for a wide range of environments. With a spring return feature and 95-second time to close, this actuator is ideal for use in HVAC systems, data centers, and other applications where precise temperature control is critical.
Top product features:
- Spring Return Damper Actuator provides proportional control of damper movement
- Rated Torque of 180 in-lb enables precise control of damper operation
- Shaft Rotation in both CW and CCW directions allows for flexible installation options
Top product applications:
- Building Automation System Compatible
- HVAC Control System
- Automated Damper Control
Actuator, Valve Application Damper, Signal Type Proportional, Rated Torque 180 in-lb, Input Voltage 24V AC/DC, Output Signal Not Applicable, Contact Form Not Applicable, Electrical Connection Type Hardwired, For Use With Building Automation Systems Building Automation System Compatible, NEMA Rating 2, IP Rating IP54, Spring Return Spring Return, Time to Close 95 sec, Shaft Type 1/2 in to 1-3/64 in Round, Shaft Rotation CW/CCW, Stroke Degree 95 Degrees
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 12.00
- Package Width: 6.20
- Package Height: 4.10
- Package Weight: 5.30
Product info last updated on March 19, 2026 6:04am UTC
Category: HVAC Parts
