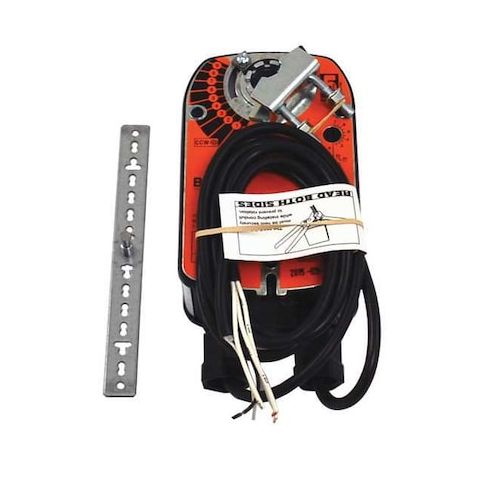

Spring Return Damper Actuator, 120VAC MPN:LF120-S
Spring Return Damper Actuator, 120VAC
The Belimo Spring Return Damper Actuator is a reliable and efficient solution for building automation systems. This 120VAC actuator is designed for use with valve applications, providing precise control over damper movement. With its 35 in-lb rated torque, it can handle a wide range of applications, from small to large-scale HVAC systems. The actuator's spring return feature ensures smooth and quiet operation, while its NEMA rating 2 and IP54 protection make it suitable for harsh environments. Ideal for use in commercial and industrial settings, this actuator is a valuable addition to any building automation system.
Top product features:
- Spring Return mechanism allows the actuator to return to its original position when power is removed.
- Actuator is compatible with building automation systems.
- Rated torque of 35 in-lb enables the actuator to control a wide range of damper sizes.
Top product applications:
- HVAC System Control
- Automated Building Temperature Regulation
- Industrial Process Control
Actuator, Valve Application Damper, Signal Type On/Off, Rated Torque 35 in-lb, Input Voltage 120V AC, Output Signal Not Applicable, Contact Form SPDT, Electrical Connection Type Hardwired, For Use With Building Automation Systems Building Automation System Compatible, NEMA Rating 2, IP Rating IP54, Spring Return Spring Return, Time to Close 75 sec, Shaft Type 3/8 in to 1/2 in Round or 3/8 in to 7/16 in Square, Shaft Rotation CW/CCW, Stroke Degree 95 Degrees , Mounting Type Direct Mount
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 8.50
- Package Width: 4.40
- Package Height: 3.30
- Package Weight: 3.80
Product info last updated on January 20, 2026 12:15am UTC
Category: HVAC Parts
