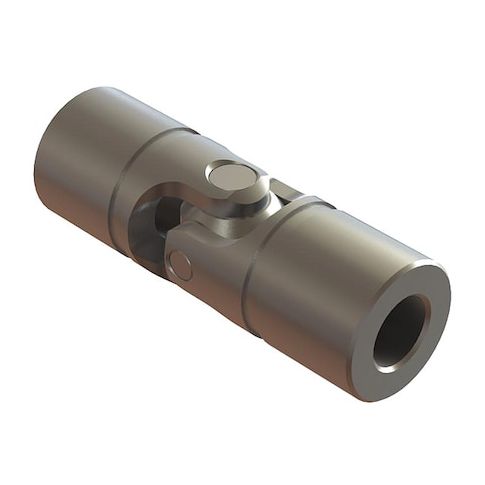

Universal Joint, Plain, 3/4" dia. Outside MPN:UJ-HD750x10
Universal Joint, Plain, 3/4" dia. Outside
The Belden Universal Joint is a high-performance coupling designed for applications requiring precise alignment and high torque transmission. Suitable for use in a wide range of industries, including automotive, aerospace, and industrial machinery, this universal joint offers a maximum operating angle of 45 degrees and a maximum torque of 28 N-m. Its alloy steel construction and pin & block joint design ensure durability and reliability. With a maximum speed of 1,000 RPM, this universal joint is ideal for applications requiring high-speed rotation and precise motion transmission. Its compact size and lightweight design make it an excellent choice for various industrial applications.
Top product features:
- Handles a maximum operating angle of 45 degrees
- Supports a maximum torque of 28 N-m
- Operates at a maximum speed of 1,000 RPM
Top product applications:
- Automotive Driveshaft
- Industrial Power Transmission
- Heavy Equipment Drive Systems
Universal Joint, Coupling Size 750, Overall Length 45 mm, Maximum Bore Diameter 10 mm, Maximum Operating Angle 45 Degrees , Yoke Length 22.5 mm, Boot Material Not Applicable, Bore Diameter 10 mm, Number of Joints Single, Joint Diameter 18 7/8 mm, Maximum Torque 28 N-m, Maximum Speed 1,000 RPM, U-Joint Material Alloy Steel, Joint Type Pin & Block, Booted No, Outside Diameter 18.9 mm, Keyway Depth Not Applicable, Keyway Width Not Applicable, Length through Bore 12.5 mm, Break Torque 141 N-m
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 45 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.50
- Package Width: 1.60
- Package Height: 1.60
- Package Weight: 0.16
- Prop 65 Cancer Warning Chemical: Ethylene thiourea
- Prop 65 Reproductive Harm Chemical: Ethylene thiourea
Product info last updated on February 23, 2026 7:10am UTC
Category: Bearings, V-belts and Power Transmission Equipment
