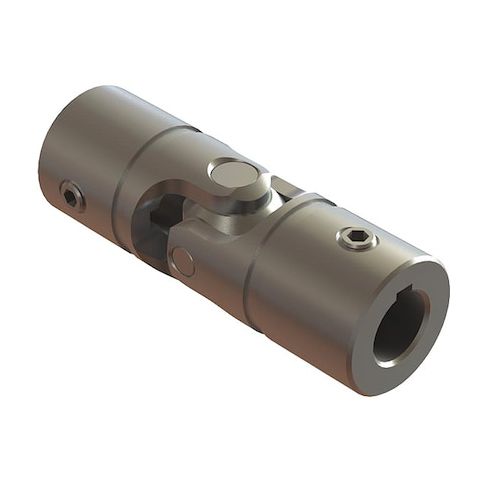

Universal Joint, Plain, 35/64" Max. Bore MPN:UJ-HD1125x14K
Universal Joint, Plain, 35/64" Max. Bore
The Belden Universal Joint is a robust and reliable component designed for high-performance applications. Suitable for use in a variety of industries, including aerospace, automotive, and industrial equipment, this universal joint provides smooth and efficient power transmission. With a maximum operating angle of 45 degrees and a maximum torque of 73 N-m, it can withstand demanding conditions. Its alloy steel construction ensures durability and resistance to wear. Perfect for applications where precise control and flexibility are required, the Belden Universal Joint is a vital component for ensuring smooth and efficient operation.
Top product features:
- Maximum Operating Angle 45 Degrees
- Maximum Torque 73 N-m
- Maximum Speed 1,000 RPM
Top product applications:
- Power transmission in industrial machinery
- Automotive applications, such as driveshafts and steering systems
- Heavy-duty equipment, including construction and agricultural machinery
Universal Joint, Coupling Size 1125, Overall Length 56 mm, Maximum Bore Diameter 14 mm, Maximum Operating Angle 45 Degrees , Yoke Length 28 mm, Boot Material Not Applicable, Bore Diameter 14 mm, Number of Joints Single, Joint Diameter 28 1/2 mm, Maximum Torque 73 N-m, Maximum Speed 1,000 RPM, U-Joint Material Alloy Steel, Joint Type Pin & Block, Booted No, Outside Diameter 28.5 mm, Keyway Depth 2.3 mm, Keyway Width 5 mm, Length through Bore 14 mm, Break Torque 367 N-m
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 45 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.30
- Package Width: 1.70
- Package Height: 1.70
- Package Weight: 0.43
- Prop 65 Cancer Warning Chemical: Ethylene thiourea
- Prop 65 Reproductive Harm Chemical: Ethylene thiourea
Product info last updated on March 5, 2026 4:02pm UTC
Category: Bearings, V-belts and Power Transmission Equipment
