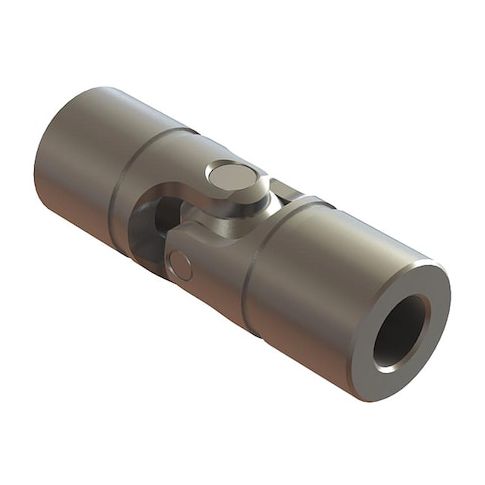

Universal Joint, Plain, 1-3/16" Max. Bore MPN:UJ-HD2500x30-140
Universal Joint, Plain, 1-3/16" Max. Bore
This high-performance universal joint is designed for demanding applications, with a maximum operating angle of 45 degrees and a maximum torque of 723 N-m. Built with alloy steel for durability and strength, it features a pin and block joint type and is suitable for use in a variety of industries, including automotive, aerospace, and heavy machinery. Its compact design and high-speed capabilities make it ideal for applications where space is limited and high-performance is required. The universal joint is also easy to install and maintain, with a simple bootless design that reduces downtime and increases overall efficiency.
Top product features:
- Maximum operating angle of 45 degrees allows for flexibility in installation and use.
- Maximum torque of 723 N-m enables high-strength applications.
- Alloy steel construction provides durability and resistance to wear and tear.
Top product applications:
- Industrial machinery
- Automotive applications
- Heavy equipment
Universal Joint, Coupling Size 2500, Overall Length 140 mm, Maximum Bore Diameter 35 mm, Maximum Operating Angle 45 Degrees , Yoke Length 70 mm, Boot Material Not Applicable, Bore Diameter 30 mm, Number of Joints Single, Joint Diameter 63 3/8 mm, Maximum Torque 723 N-m, Maximum Speed 1,000 RPM, U-Joint Material Alloy Steel, Joint Type Pin & Block, Booted No, Outside Diameter 63.4 mm, Keyway Depth Not Applicable, Keyway Width Not Applicable, Length through Bore 34.1 mm, Break Torque 3,615 N-m
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 45 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 8.30
- Package Width: 2.70
- Package Height: 2.70
- Package Weight: 5.14
- Prop 65 Cancer Warning Chemical: Ethylene thiourea
- Prop 65 Reproductive Harm Chemical: Ethylene thiourea
Product info last updated on February 2, 2026 4:24am UTC
Category: Bearings, V-belts and Power Transmission Equipment
