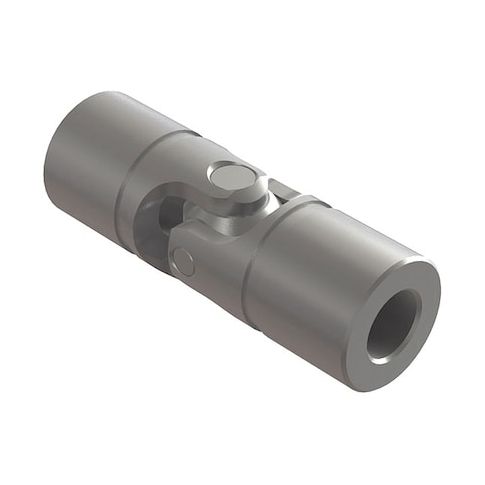

Universal Joint, Plain, 1-3/16" Max. Bore MPN:UJ-SS2000x30
Universal Joint, Plain, 1-3/16" Max. Bore
The Belden Universal Joint is a high-performance, stainless steel coupling designed for demanding applications. With a maximum operating angle of 45 degrees and a maximum torque of 352 N-m, it can withstand extreme conditions. Its compact size and lightweight design make it ideal for use in aerospace, automotive, and industrial settings. The universal joint's ability to absorb misalignment and vibration reduces wear and tear on connected components, increasing overall system reliability and lifespan. Its use in critical applications such as engines, gearboxes, and power transmission systems provides a smooth, reliable, and efficient operation.
Top product features:
- Maximum Operating Angle 45 Degrees
- Maximum Torque 352 N-m
- Maximum Speed 1,000 RPM
Top product applications:
- Drive shafts in industrial machinery
- Automotive applications, including steering and drivetrain systems
- Heavy equipment, such as cranes and excavators
Universal Joint, Coupling Size 2000, Overall Length 139.7 mm, Maximum Bore Diameter 35 mm, Maximum Operating Angle 45 Degrees , Yoke Length 69.9 mm, Boot Material Not Applicable, Bore Diameter 30 mm, Number of Joints Single, Joint Diameter 50 11/16 mm, Maximum Torque 352 N-m, Maximum Speed 1,000 RPM, U-Joint Material Stainless Steel, Joint Type Pin & Block, Booted No, Outside Diameter 50.7 mm, Keyway Depth Not Applicable, Keyway Width Not Applicable, Length through Bore 43.2 mm
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 43 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.30
- Package Width: 2.90
- Package Height: 2.70
- Package Weight: 3.10
- Prop 65 Cancer Warning Chemical: Ethylene thiourea
- Prop 65 Reproductive Harm Chemical: Ethylene thiourea
Product info last updated on February 7, 2026 6:55am UTC
Category: Bearings, V-belts and Power Transmission Equipment
