Universal Joint, Plain, 15/32" Max. Bore MPN:UJ-HD1000x12K

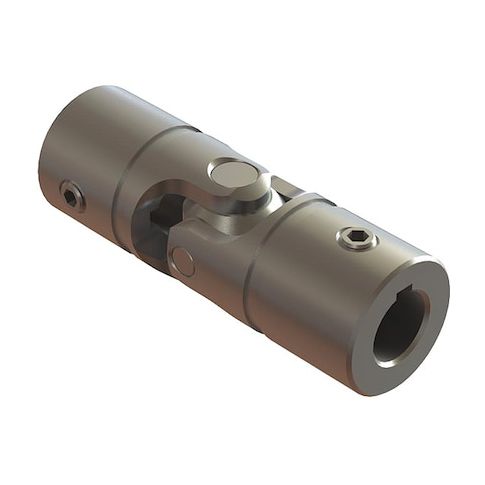

Universal Joint, Plain, 15/32" Max. Bore
This universal joint from Belden is a high-quality solution for applications requiring precise power transmission. With a maximum operating angle of 45 degrees and a maximum torque of 50 N-m, it's ideal for use in machinery, equipment, and automotive systems. Its alloy steel construction and pin & block joint design provide durability and reliability. The compact size and lightweight design make it suitable for a variety of applications, including robotics, industrial automation, and power transmission systems. Whether you need to transmit power or motion, this universal joint is a reliable and efficient choice.
Top product features:
- Maximum Operating Angle of 45 Degrees allows for flexibility in installation and use.
- Maximum Torque of 50 N-m enables the universal joint to handle heavy loads and high-stress applications.
- Joint Type Pin & Block design provides a secure and durable connection between components.
Top product applications:
- Industrial machinery
- Automotive driveshafts
- Power transmission systems
Universal Joint, Coupling Size 1000, Overall Length 50 mm, Maximum Bore Diameter 12 mm, Maximum Operating Angle 45 Degrees , Yoke Length 25 mm, Boot Material Not Applicable, Bore Diameter 12 mm, Number of Joints Single, Joint Diameter 25 5/16 mm, Maximum Torque 50 N-m, Maximum Speed 1,000 RPM, U-Joint Material Alloy Steel, Joint Type Pin & Block, Booted No, Outside Diameter 25.3 mm, Keyway Depth 1.8 mm, Keyway Width 4 mm, Length through Bore 12.3 mm, Break Torque 254 N-m
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 45 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.10
- Package Width: 1.70
- Package Height: 1.70
- Package Weight: 0.33
- Prop 65 Cancer Warning Chemical: Ethylene thiourea
- Prop 65 Reproductive Harm Chemical: Ethylene thiourea
Product info last updated on March 17, 2026 8:14am UTC
Category: Bearings, V-belts and Power Transmission Equipment
