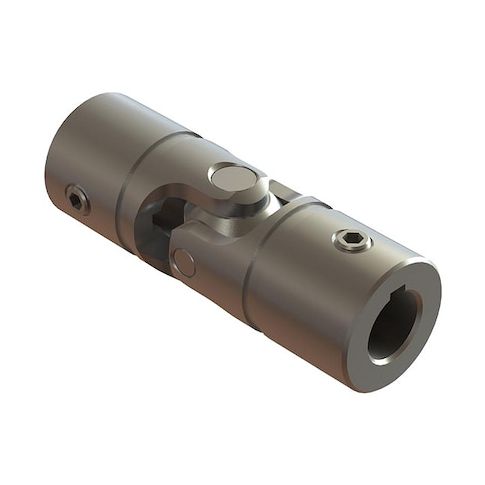

Universal Joint, 1000 RPM, Steel MPN:UJ-HD625x313K
Universal Joint, 1000 RPM, Steel
The Belden Universal Joint is a high-performance coupling designed for applications requiring high torque and speed. Suitable for use in a variety of industries, this steel universal joint is ideal for applications such as industrial equipment, automotive, and aerospace. Its alloy steel construction provides durability and resistance to wear and tear, while its 45-degree maximum operating angle allows for flexibility and adaptability. With a maximum torque of 135 in-lb and a maximum speed of 1,000 RPM, this universal joint is perfect for applications requiring precision and reliability. Its compact design and easy installation make it a versatile solution for any industry.
Top product features:
- Handles high-speed applications up to 1000 RPM
- Provides a maximum operating angle of 45 degrees
- Supports a maximum torque of 135 in-lb
Top product applications:
- Industrial machinery applications such as pumps, compressors, and gearboxes
- Automotive applications such as driveshafts and suspension systems
- Aerospace applications such as aircraft engine mounts and landing gear
Universal Joint, Coupling Size 625, Overall Length 2 1/4 in, Maximum Bore Diameter 3/8 in, Maximum Operating Angle 45 Degrees , Yoke Length 1 1/8 in, Boot Material Not Applicable, Bore Diameter 5/16 in, Number of Joints Single, Joint Diameter 5/8 in, Maximum Torque 135 in-lb, Maximum Speed 1,000 RPM, U-Joint Material Alloy Steel, Joint Type Pin & Block, Booted No, Outside Diameter 5/8 in, Keyway Depth 3/64 in, Keyway Width 3/32 in, Length through Bore 13/16 in, Break Torque 675 in-lb
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.30
- Package Width: 1.60
- Package Height: 1.50
- Package Weight: 0.12
- Prop 65 Cancer Warning Chemical: Nickel (Metallic)
Product info last updated on February 25, 2026 9:27pm UTC
Category: Bearings, V-belts and Power Transmission Equipment
