Universal Joint, 1000 RPM, Steel MPN:UJ-HD1250x625K

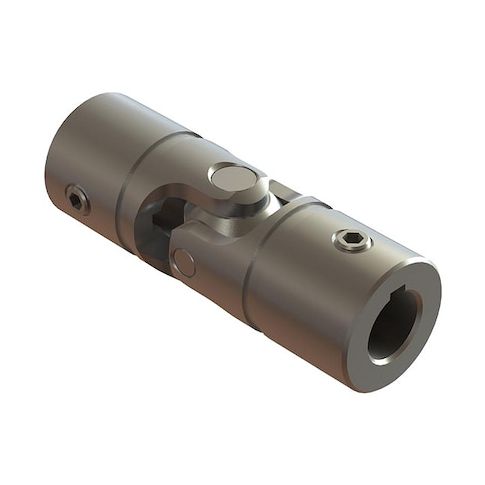

Universal Joint, 1000 RPM, Steel
The Belden Universal Joint is a high-performance coupling designed for applications requiring flexibility and durability. With a maximum operating angle of 45 degrees and a maximum torque of 1,040 in-lb, this joint is ideal for use in industrial machinery, automotive systems, and other high-torque applications. Its alloy steel construction and pin & block joint design ensure long-lasting performance and resistance to wear. With a maximum speed of 1,000 RPM, this joint is suitable for use in a variety of applications, including power transmission, conveyor systems, and agricultural equipment. Its compact size and lightweight design make it easy to integrate into new or existing systems.
Top product features:
- Handles a maximum operating angle of 45 degrees
- Accepts a maximum torque of 1,040 in-lb
- Operates at a maximum speed of 1,000 RPM
Top product applications:
- Power Steering Systems
- Automotive Driveshafts
- Industrial Power Transmission
Universal Joint, Coupling Size 1250, Overall Length 3 3/4 in, Maximum Bore Diameter Not Applicable, Maximum Operating Angle 45 Degrees , Yoke Length 1 7/8 in, Boot Material Not Applicable, Bore Diameter 5/8 in, Number of Joints Single, Joint Diameter 1 1/4 in, Maximum Torque 1,040 in-lb, Maximum Speed 1,000 RPM, U-Joint Material Alloy Steel, Joint Type Pin & Block, Booted No, Outside Diameter 1 1/4 in, Keyway Depth 3/32 in, Keyway Width 3/16 in, Length through Bore 1 1/4 in
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.90
- Package Width: 1.50
- Package Height: 1.50
- Package Weight: 0.87
- Prop 65 Cancer Warning Chemical: Nickel (Metallic)
Product info last updated on February 27, 2026 3:15am UTC
Category: Bearings, V-belts and Power Transmission Equipment
