Universal Joint, US24, 3/4" Bore Dia. MPN:US24-12-8-F

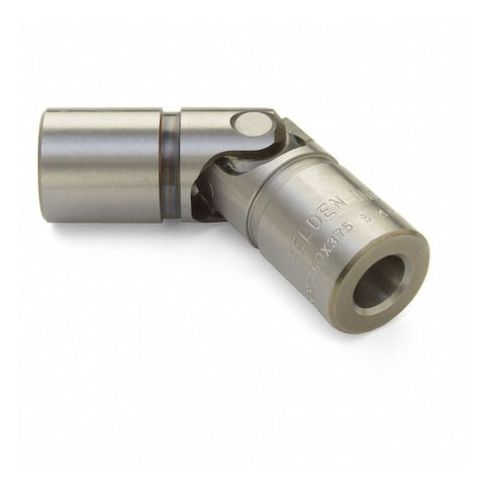

Universal Joint, US24, 3/4" Bore Dia.
This heavy-duty universal joint from Belden is designed for high-torque applications, providing a maximum operating angle of 45 degrees and a maximum torque of 2,000 in-lb. With a maximum speed of 1,000 RPM, it's ideal for use in industrial machinery, agricultural equipment, and construction vehicles. Its alloy steel construction ensures durability and resistance to wear and tear. The joint's compact design allows for easy installation and reduced vibration, making it a reliable choice for applications where precise movement and high torque are required. Its versatility and rugged construction make it a valuable component in many industries.
Top product features:
- Handles up to 2,000 in-lb of torque
- Operates at speeds up to 1,000 RPM
- Supports a maximum operating angle of 45 degrees
Top product applications:
- Industrial machinery
- Construction equipment
- Agricultural machinery
Universal Joint, Coupling Size 1500, Overall Length 4 1/4 in, Maximum Bore Diameter 3/4 in, Maximum Operating Angle 45 Degrees , Yoke Length 2 1/8 in, Boot Material Not Applicable, Bore Diameter 1/2 in, 3/4 in, Number of Joints Single, Joint Diameter 1 1/2 in, Maximum Torque 2,000 in-lb, Maximum Speed 1,000 RPM, U-Joint Material Alloy Steel, Joint Type Pin & Block, Booted No, Outside Diameter 1 1/2 in, Keyway Depth Not Applicable, Keyway Width Not Applicable, Length through Bore 1 3/8 in
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 8.00
- Package Width: 6.00
- Package Height: 3.00
- Package Weight: 1.46
Product info last updated on February 1, 2026 11:42am UTC
Category: Bearings, V-belts and Power Transmission Equipment
