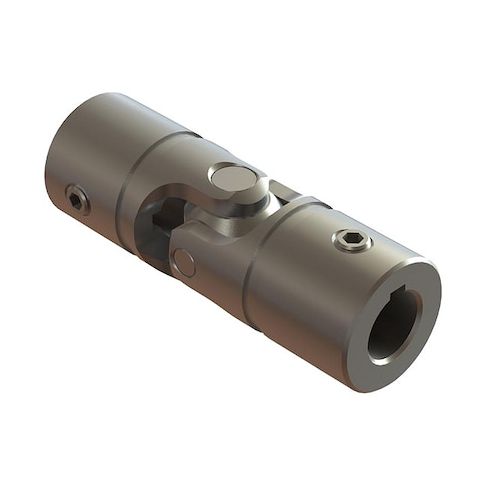

Universal Joint, 1000 RPM, Steel MPN:UJ-HD1500x750K
Universal Joint, 1000 RPM, Steel
This Belden universal joint is a high-performance component designed for applications requiring precise motion transmission. With a maximum operating angle of 45 degrees and a maximum torque of 2,000 in-lb, it can handle demanding tasks in industrial settings. Its alloy steel construction and pin & block joint design provide durability and reliability. Suitable for use in power transmission systems, the universal joint is ideal for applications such as machinery, equipment, and automotive industries. Its compact size and versatility make it an excellent choice for a wide range of motion transmission needs, ensuring smooth operation and extended equipment lifespan.
Top product features:
- Handles high torque up to 2,000 in-lb
- Operates at speeds up to 1,000 RPM
- Designed for a maximum operating angle of 45 degrees
Top product applications:
- Pneumatic or hydraulic systems where high-speed drives are required
- Industrial machinery that involves high-speed rotation
- Power transmission applications in heavy-duty equipment
Universal Joint, Coupling Size 1500, Overall Length 4 1/4 in, Maximum Bore Diameter Not Applicable, Maximum Operating Angle 45 Degrees , Yoke Length 2 1/8 in, Boot Material Not Applicable, Bore Diameter 3/4 in, Number of Joints Single, Joint Diameter 1 1/2 in, Maximum Torque 2,000 in-lb, Maximum Speed 1,000 RPM, U-Joint Material Alloy Steel, Joint Type Pin & Block, Booted No, Outside Diameter 1 1/2 in, Keyway Depth 3/32 in, Keyway Width 3/16 in, Length through Bore 1 3/8 in
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 7.20
- Package Width: 2.10
- Package Height: 2.10
- Package Weight: 1.53
- Prop 65 Cancer Warning Chemical: Nickel (Metallic)
Product info last updated on March 5, 2026 3:34pm UTC
Category: Bearings, V-belts and Power Transmission Equipment
