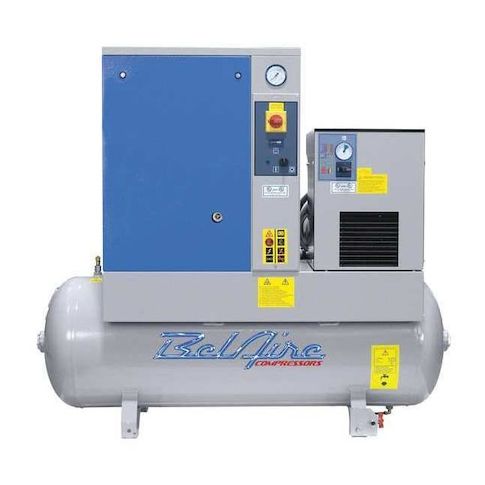

Rotary Screw Air Compressor, 7.5 HP, 60 gal Horizontal Tank, Air Dryer, 155 psi, 3-Phase MPN:BR7.5 TMD-3
Boost productivity and efficiency with the BelAire 7.5 HP 60 Gallon 150 PSI Screw Compressor, featuring a powerful 21.2 CFM air flow at maximum pressure. Designed for heavy-duty use, this 3-phase compressor is ideal for industries such as manufacturing, construction, and automotive repair. The included air dryer ensures clean and dry air, extending tool life and reducing downtime. With its compact design and low noise level of 64 dBA, this compressor is perfect for busy workshops and job sites. Order now and experience the benefits of increased productivity and reduced maintenance costs.
Top product features:
- 7.5 HP motor for high-pressure air compression
- 60-gallon tank for extended air supply
- 150 PSI screw compressor for efficient air delivery
Top product applications:
- Industrial Painting
- Automotive Repair Shops
- Construction Sites
The BELAIRE BR7.5 TMD-3 is a 7.5 HP rotary screw air compressor with an integrated air dryer and a 60 gallon horizontal ASME tank. Rated free air delivery: 21.2 CFM at maximum pressure, has a maximum rated pressure of 155 psi, and Rated for operation on 3-phase power (208–230/460 V) and rated for continuous duty.
Key Features:
- Power: 7.5 HP (air compressor)
- Rated free air delivery: 21.2 CFM at maximum pressure
- Maximum pressure: 155 psi
- ASME‑certified horizontal tank: 60 gal
- Integrated refrigerant air dryer (R-134a)
- Voltage & phase: 208–230/460 V AC, 3-phase
- Full‑load current: 21.5 A (208 V), 19.5 A (230 V), 9.9 A (460 V)
- Motor speed: 7,397 RPM
- Measured sound level: 64 dBA at 3 ft
- Rated duty cycle: Continuous
- Ambient operating temperature range: 33 to 104 °F
- Outlet connection: 1/2 in NPT
- Overall dimensions: 56 in (L) × 22 in (D) × 49.4 in (H)
Additional Information
- Country of Origin: IT
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 21 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 59.00
- Package Width: 25.00
- Package Height: 54.00
- Package Weight: 570.00
