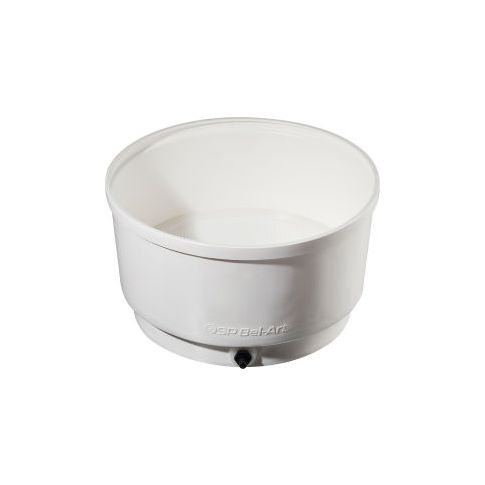

Bel-Art Polyethylene Buchner Table-Top Funnel with Perforated Fixed Plate 18" I.D. 11.5" Height 146280000
Bel-Art Polyethylene Buchner Table-Top Funnel with Perforated Fixed Plate 18" I.D. 11.5" Height
This polyethylene Buchner table-top funnel is designed for efficient filtration of large volumes. Use it with fritware or perforated filter plates to separate liquids from solids quickly. The removable hose barbed connector allows for easy connection to a vacuum source. The funnel's non-porous ring seals filter paper when used with fritware plates, ensuring a tight seal. Ideal for applications such as precious metals recovery, chemical analysis, and pharmaceutical development, this funnel provides precise control over filtration processes. Its durable construction and wide temperature range make it suitable for a variety of laboratory settings and industrial applications.
Top product features:
- Filter large volumes quickly using your choice of fritware or perforated filter plate.
- Removable hose barbed connector accepts 12.7mm ID tube and threads into NPT bung on the funnel.
- The non-porous ring at the periphery of the fritware porous filter plates seals filter paper when used.
Top product applications:
- Filtration of chemicals and solvents in a laboratory setting
- Precious metals recovery
- Filtration of biological fluids and samples in a medical or research laboratory
Filter large volumes quickly with a polyethylene plastic table-top buchner funnel using your choice of fritware®or perforated filter plate. Ul style"margin-top0px; padding-top 5px; padding-bottom 5px;" removable hose barbed connector accepts 12.7mm (") i.D. Tube and threads into " npt bung on the funnel fixed or removable fritware®porous filter plates supported by a multiple ring grid; hdpe 6.4mm (") thick with a non-porous ring at the periphery of the plate which seals filter paper when usedofritware®porous filter plates available in two porosities (medium and coarse); medium is 45-90 microns while the coarse is 90-130 microns; use temperature range maximum 52°c (125°f) minimum -20°c (-4°f) fixed or removable perforated filter plates are made of 4.8mm (/") thick hdpe with 4.8mm (/") perforations on 11mm (/") centersoperforated filter plates available in two versions (fixed or removable); fixed for coarse filtration or use with a cloth or paper filter; removable for use in precious metals recovery; use temperature range maximum 52°c (125°f) minimum -20°c (-4°f) use the f36820-0118 funnel trowel to quickly and efficiently smooth fissures appearing during the filtration process note truck shipping is required for 36" funnels
Additional Information
- UNSPSC: 41121809
- Brand: Bel-Art Products
- Package Quantity: 1
- Country of Origin: US
- FOB Origin: NJ
- Ships by: PARCEL
- Comes in a kit: No
- Newly added to catalog: No
- Item is on Clearance: No
- Contains Hazardous Materials: No
- CA Proposition 65 Applies: No
- Package Length: 20.25
- Package Width: 15.50
- Package Height: 19.50
- Package Weight: 17.50
Product info last updated on May 19, 2025 3:12am UTC
Category: Labware and Utensils
