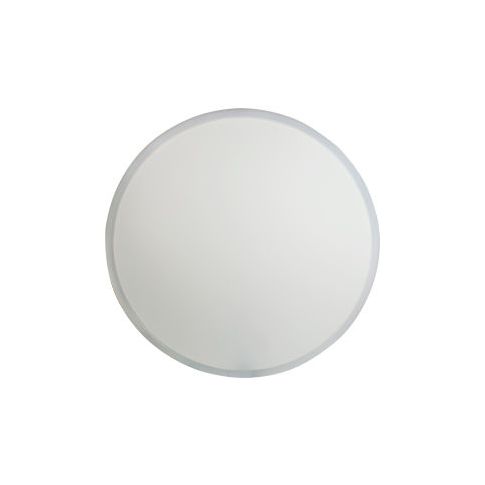

Bel-Art Polyethylene Coarse Porous 90-130 Micron Filter Plate for 18" I.D. Buchner Funnels 914624457
Bel-Art Polyethylene Coarse Porous 90-130 Micron Filter Plate for 18" I.D. Buchner Funnels
This polyethylene filter plate is designed for use with 18in I.D. Buchner funnels, ideal for filtering large volumes of liquids quickly and efficiently. The coarse porous filter plate features a 90-130 micron porosity, making it suitable for a variety of applications including precious metals recovery and chemical filtration. The plate's HDPE construction allows for use in a temperature range of -20°c to 52°c, and its non-porous ring seals filter paper in place. The removable hose barbed connector accepts 12.7mm I.D. tube, making it easy to connect to a filtration system.
Top product features:
- Polyethylene plastic table-top buchner funnel allows for large volume filtration
- Fixed or removable fritware porous filter plates supported by a multiple ring grid
- Removable hose barbed connector accepts 12.7mm I.D. tube and threads into NPT bung on the funnel
Top product applications:
- Precious metals recovery
- Laboratory filtration of chemicals and solutions
- Filtration of large volumes of biological samples and liquids
Filter large volumes quickly with a polyethylene plastic table-top buchner funnel using your choice of fritware®or perforated filter plate. Ul style"margin-top0px; padding-top 5px; padding-bottom 5px;" removable hose barbed connector accepts 12.7mm (") i.D. Tube and threads into " npt bung on the funnel fixed or removable fritware®porous filter plates supported by a multiple ring grid; hdpe 6.4mm (") thick with a non-porous ring at the periphery of the plate which seals filter paper when usedofritware®porous filter plates available in two porosities (medium and coarse); medium is 45-90 microns while the coarse is 90-130 microns; use temperature range maximum 52°c (125°f) minimum -20°c (-4°f) fixed or removable perforated filter plates are made of 4.8mm (/") thick hdpe with 4.8mm (/") perforations on 11mm (/") centersoperforated filter plates available in two versions (fixed or removable); fixed for coarse filtration or use with a cloth or paper filter; removable for use in precious metals recovery; use temperature range maximum 52°c (125°f) minimum -20°c (-4°f) use the f36820-0118 funnel trowel to quickly and efficiently smooth fissures appearing during the filtration process note truck shipping is required for 36" funnels
Additional Information
- UNSPSC: 40161502
- Brand: Bel-Art Products
- Color: White
- Package Quantity: 1
- Country of Origin: US
- FOB Origin: NJ
- Ships by: PARCEL
- Comes in a kit: No
- Newly added to catalog: No
- Item is on Clearance: No
- Contains Hazardous Materials: No
- CA Proposition 65 Applies: No
- Package Length: 14.00
- Package Width: 12.00
- Package Height: 8.00
- Package Weight: 3.00
Product info last updated on May 19, 2025 3:13am UTC
Category: Lab Equipment and Instruments
