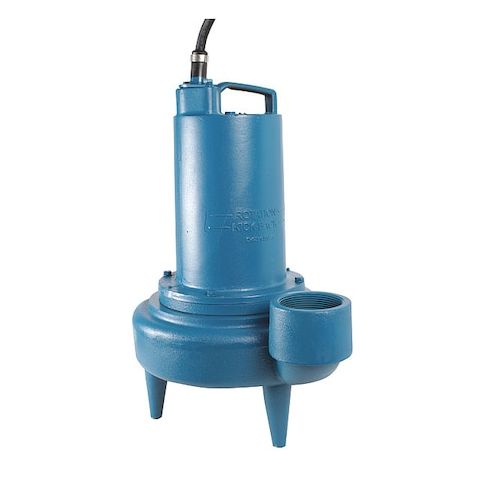

Sewage Ejector Pump, 3SE-L Series, 3 hp, 3 in FNPT, 460V AC, 3 Phase, 30 ft Cord MPN:133117

• The BARNES - 133117 Sewage Ejector Pump (Series 3SE-L) is rated for submersible, corded-electric operation and rated for continuous-duty operation with sewage water. It is a three-phase, 3 hp unit rated for operation at 460 VAC, 60 Hz with a 30 ft power cord, 1,750 RPM motor speed, and a maximum liquid temperature of 104°F

• performance is rated at 185 gpm at 10 ft of head with a maximum head of 66 ft and solids handling maximum diameter 2.5 in.

  Key Features:

  • Item/Model: Sewage Ejector Pump, BARNES model 133117, Series 3SE-L
  • Power/Electrical: 3 hp, three-phase (3), 460V AC, 60 Hz, corded electric with 30 ft cord
  • Duty & Media: Rated for continuous-duty operation with sewage water
  • Hydraulic performance: 185 gpm @ 10 ft head
  • maximum head 66 ft
  • Solids handling: Maximum solids diameter 2.5 in
  • Discharge: 3 in FNPT female vertical discharge (NPT standard)
  • Materials: Cast iron body, volute, impeller, and motor housing
  • Mechanical: Single mechanical shaft seal
  • 1,750 RPM rotation speed
  • Dimensions & installation: Body/overall diameter 14 1/2 in
  • overall height 14 1/2 in
  • width at widest point 14 1/2 in
  • minimum sump pit diameter 24 in
  • Standards & warranty: Complies with SSPMA standards
  • 2 yr manufacturers warranty
