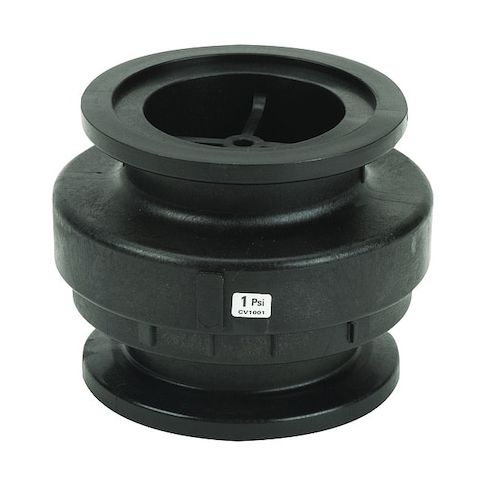

Check Valve, Inline Spring, 2 in, Flanged, Polypropylene Body, 150 psi, 3 in Overall L MPN:MCV220
Free Shipping
In Stock
The Banjo 3 in Overall L Check Valve is a reliable and efficient solution for various industrial applications. This check valve ensures one-way fluid flow, preventing backflow and damage to equipment. Its compact design and lightweight construction make it ideal for use in tight spaces, while its durable materials withstand harsh environments. Suitable for use in chemical processing, oil and gas, and water treatment industries, this check valve provides a safe and cost-effective solution for maintaining system integrity and preventing costly repairs. Its fast lead time and easy ordering process make it a convenient choice for businesses of all sizes.
Top product features:
- Ships in 1 day
- Has a minimum order quantity of 1
- Has a unit of measure of EA
Top product applications:
- Air Compressor System: The check valve ensures one-way flow of compressed air, preventing backflow and maintaining system pressure.
- Industrial Piping: The check valve is used to control the flow of fluids in piping systems, preventing backflow and ensuring safe operation.
- Hydraulic System: The check valve is used to regulate the flow of hydraulic fluid, preventing backflow and maintaining system pressure and performance.
BANJO MCV220 is an inline check valve for water service, configured for one-direction flow and reverse-flow reduction in compatible piping and pump systems. This flanged valve has a 2 in nominal size, a glass-filled polypropylene body, and a poppet check mechanism with 316 stainless steel spring and mechanism components. It is rated for horizontal or vertical mounting, with a 1 psi cracking pressure, rated flow: 235 gpm, and a maximum operating pressure of 150 psi.
Key Features:
- Valve type: Inline spring check valve with poppet mechanism.
- Body material: Glass-filled polypropylene.
- Internal materials: 316 stainless steel check mechanism and spring with EPDM seal.
- Connection style: Flanged on side 1 and side 2.
- Connection size: 2 in x 2 in
- nominal valve size: 2 in.
- Pressure and flow: 1 psi cracking pressure, rated flow: 235 gpm, 150 psi maximum operating pressure.
- Temperature range: 0 degrees F to 150 degrees F.
- Mounting orientation: Horizontal or vertical.
- Dimensions: 3 in overall length, 4 in overall height, 3 7/8 in width, 4 in hex size.
- Silent check specification: Standard.
- Counterweight: None.
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 20.00
- Package Width: 8.00
- Package Height: 4.00
- Package Weight: 5.00
