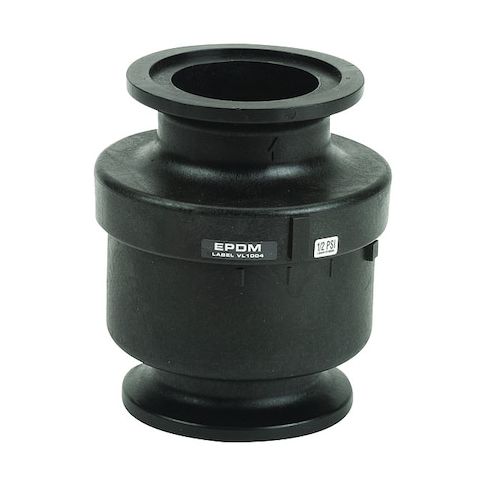

Check Valve, Inline Spring, 2 in, Flanged, Polypropylene Body, EPDM Seal, 200 psi MPN:MCV221
Free Shipping
In Stock
This Check Valve from Banjo is a reliable and efficient solution for various applications, including hydraulic and pneumatic systems. Its compact design and durable construction make it ideal for use in tight spaces, while its quick shipping and low lead time ensure that you can get back to work as soon as possible. With a minimum order quantity of just one, you can easily incorporate this check valve into your existing system or use it as a replacement part. Its versatility and convenience make it a valuable addition to any industry or operation.
Top product features:
- Prevents backflow of fluid
- Regulates fluid flow
- Functions as a one-way valve
Top product applications:
- Automotive Applications
- Industrial Process Control
- Hydraulic Systems
BANJO MCV221 is an inline check valve designed for one-way water flow applications and automatic closure to limit reverse flow. It features a 2 in x 2 in flanged connection layout and a poppet-style internal mechanism with an inline spring design for water handling systems with backflow control applications.
Key Features:
- Valve type: Check valve for one-way flow applications
- Body material: Glass-filled polypropylene
- Check mechanism: Poppet
- Check mechanism material: 316 stainless steel
- Spring material: 316 stainless steel
- Seal material: EPDM
- Connection type: Flanged
- Side 1: 2 in flange, Side 2: 2 in flange
- Nominal valve size: 2 in
- Flow rating: 377 gpm
- Cracking pressure: 0.5 psi
- Maximum operating pressure: 200 psi
- Operating temperature range: 0°F to 150°F
- Mounting orientation: Horizontal or vertical
- Valve body style: Inline
- Overall length: 4.78 in
- Overall dimensions: 4 3/32 in H x 4 3/32 in W
- Silent check: Standard
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 22.50
- Package Width: 9.00
- Package Height: 5.00
- Package Weight: 6.65
