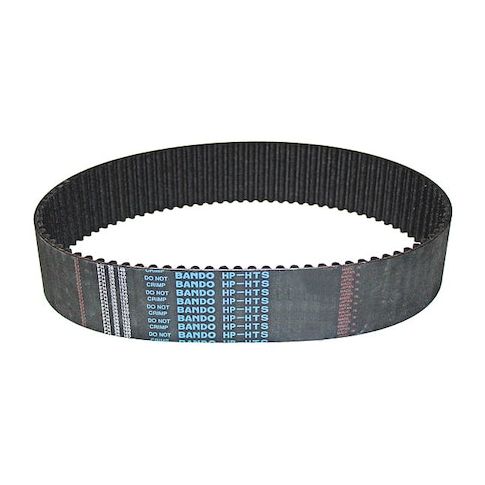

Timing Belt, 1224-8M-30 MPN:1224-8M-30
Timing Belt, 1224-8M-30
The Bando 1224-8M-30 Timing Belt is a high-performance solution for demanding applications requiring high horsepower. Constructed with neoprene material and a nylon coating, this belt offers excellent durability and resistance to heat and cold. Its Synchro-Link(R) HT series design ensures precise synchronization and smooth operation. With a maximum operating temperature of 194°F and a minimum operating temperature of -22°F, this belt can withstand a wide range of conditions. Suitable for use in industrial machinery, power transmission systems, and other high-torque applications, the 1224-8M-30 Timing Belt delivers reliable performance and long lifespan.
Top product features:
- Neoprene belt material provides resistance to heat and chemicals
- Synchro-Link(R) HT belt series is designed for high horsepower applications
- Fiberglass reinforcing cord adds strength and durability to the belt
Top product applications:
- High Horsepower
- High Temperature
- High Torque
Timing Belt, Belt Material Neoprene, Belt Series Synchro-Link(R) HT, Industry Number 1224-8M-30, Number of Teeth 153, Pitch 8 mm, Pitch Length 1,224 mm, Tooth Location One Side, Top Width 30 mm, Application High Horsepower, Belt Coating Nylon, Belt Trade Size HTD, Length Type Closed Loop, Maximum Operating Temperature 194 Degrees F, Minimum Operating Temperature -22 Degrees F, Outside Length Not Applicable, Reinforcing Cord Material Fiberglass
Additional Information
- Country of Origin: JP
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 7 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 12.00
- Package Width: 1.50
- Package Height: 12.00
- Package Weight: 0.42
Product info last updated on February 24, 2026 11:53am UTC
Category: Bearings, V-belts and Power Transmission Equipment
